Tamiya 58282 - 1/10 TA04-R Chassis Kit  [58282]

Tamiya 58282 - 1/10 TA04-R Chassis Kit
Price:
USD$425.80
Brand:
Tamiya
Model:
58282
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"

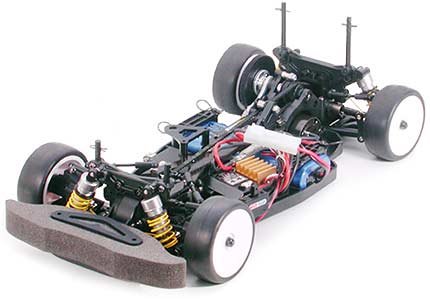

Double-deck frame of chassis features carbon reinforced resin lower deck and full carbon upper deck for increased durability. Chassis employs 2-belt 4WD with a complete group of ball bearings along with ball differential gears for optimum drive efficiency. With a complete selection of option components and suspension system which can be fine-tuned, this R/C framework remains real to pure racing. (motor, battery pack and rate control perhaps not included)

Designed for Speed, Right Down to the Wheels Double wishbone suspension includes approval modification process and super-efficient wheel dampers. F/R top arms, steering tie rods, and torque rods function turnbuckle shafts capable of fine adjustment.
The 04 Module Spur Gear- the Icing on the Cake 04 module spur gear employs carbon plating to keep gear set up. 45T Pinion gear comes with 128, 120, 112T spur gears. Chassis comes with aluminum motor heat sink to facilitate effective heat escape.

2 Belt Drive 4WD- a Recipe for Drive effectiveness
The TA04-R's 2 Belt Drive 4WD system affords minimized friction for maximum racing effectiveness.

 Specs

  • Chassis Type: TA04-R
  • Scale: 1/10
  • Overall Length: 355mm
  • General Width: 186mm
  • Total Height: 135mm
  • Clearance: 8mm
  • Body weight Fully Equipped: 1,425g (Dimension includes TP-S3003 servo, CPR Unit and RC2400SP Battery, without body.)
  • Wheelbase: 257mm
  • Tread F/R: both 162mm
  • Chassis Material: Carbon/Carbon dietary fiber strengthened nylon
  • Chassis Shape: Double Deck Frame
  • Steering Tie Rod: 3 part
  • Suspension system: Front and Rear Double Wishbone
  • Caster Angle-F/R: 6deg/2deg
  • Camber Angle-F/R: adjustable
  • Toe Angle-F/R: 0 deg. adjustable/4deg
  • Damper: F/R TRF Damper
  • Transmission Type: Belt Mid-ship Full-time 4WD
  • Gear Ratio: 5.69:1 (kit standard)
  • Diff. Gear System: F/R Ball Diff
  • Suggested Speed Controller: Electronic Speed Controller
  • Tire Width: F/R both 24mm
  • Tread Pattern: F/R Slicks
  • Tire Diameter: F/R both 64mm
Optional Components Included
  • Carbon Reinforced Resin Lower Deck
  • TRF Dampers
  • Aluminum Back Bulkhead Beam
  • Aluminum Servo Stay
  • Urethane Bumper
  • Universal Shaft
  • 5mm Aluminum Ball Connector (10 pcs.)
  • Medium-Narrow Reinforced Tires Type A
  • Medium-Narrow Soft Inner Foam (1 Pair)
  • TA04 Ball Differential Product
  • TA04 Aluminum Engine Heat Sink
  • On-Road Tuned Tricky Spring Set
  • TA04 Colors Stabilizer Set (Front)
  • TA04 Colors Stabilizer Set (Back)
  • 4mm Complex Lock-Nut & Spacer Set
  • TA04 Aluminum Hub Set For Spur Gear
  • TA04 Racing Hub Carrier Set
  • TA04 Toe-In Rear Uprights
  • TA04 Low Friction Belt (Front)
  • TA04 Low Friction Belt (Rear)
  • TA04 Carbon Upper Deck
  • Complete Bearing Set
  • *F/R Upper Arm, Steering Rod, Steering Linkage, and Torque Rod all usage Turnbuckle Shaft.
ELECTRICAL KITS NEED: (unless stated differently above)
  • Broadcast: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or top for 6-cell battery pack
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Things: Building and track equipment
