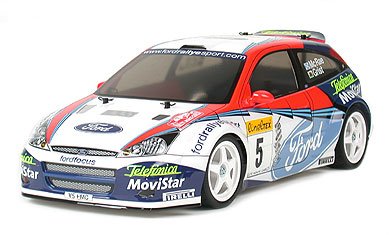

Tamiya 58292 - 1/10 RC Ford Focus RS WRC (TL-01)  [58292]

Within the 2002 WRC season Team Ford group started with a bang, once the Focus RS WRC 02 driven by Carlos Sainz took third place in the Monte Carlo and Swedish Rallies. Needs a 2-channel radio and operates on a 7.2V battery pack

Basic Specifications

• Chassis Type: TL-01
• Scale: 1/10
• Length: 16.45 inches (418mm)
• Width: 7.28 ins (185mm)
• Wheelbase: 10.11 inches (257mm)
• Front Tread: 6.18 ins (157mm)
• Back Tread: 6.18 inches (157mm)
• Body weight: 3.90 pounds. (1767g)
• Chassis: ABS Monocoque
• Suspension: 4 wheel separate
• Damper Type: Plastic coil over friction
• Drive Train: 4WD shaft drive
• Gear Ratio: 7.96:1
• Differential Type: Bevel Gear
• Engine: Electrical 540
• Speed Controller: 3 Action F&R Mechanical
• Wheels & Tires: 10 spoke / Slick
• Physique: Clear/Polycarbonate
• Steering Tie Rod: 2 part
• Suspension system: front side and back double wishbone
• Damper: friction damper
• Transmission kind: shaft drive mid-ship full-time 4WD
• Diff. gear system F/R: 3-Bevel Diff
• Tire width F/R: both 27mm
• Tire diameter F/R: both 64mm
• Tread pattern F/R: slicks
• Energy source: 7.2V battery

�

• 53467 - TL-01 & FF02 longer suspension system supply set
• 53440 - On-road tuned hard springtime set
• 53418 - TL-01 Universal shaft (2pc.)
• 53347 - 3x3mm spring set screws (10pc.)
• 53346 - TL-01/M03 quick release battery pack holder
• 53345 - TL-01/M03 toe-in rear upright
• 53342 - TL-01 speed-tuned gear set
• 53333 - Touring vehicle tuned spring set (brief)
• 53324 - TL-01 stabilizer set
• 53323 - TL-01 carbon propeller shaft
• 53322 - TL-01 hollow carbon gear shaft
• 53303 - TL-01 adjustable upper supply set
• 53301 - TL-01 metal suspension system shaft set
• 53300 - TL-01 turnbuckle tie-rod set
• 53295 - Tire inner foam
• 53292 - TL-01 ball bearing set
• 53280 - TA03 super low friction damper set (4pc.)
• 53267 - TA03 ball differential
• 53163 - On-road tuned spring set
• 53162 - 4mm anodized aluminum flanged lock peanuts (black)
• 53161 - 4mm anodized aluminum flanged lock nuts (silver)
• 53160 - 4mm anodized aluminum flanged lock nuts (red)
• 53159 - 4mm anodized aluminum flanged lock peanuts (azure)
• 53144 - Touring & rally car bushing & ball connector set
• 53141 - 4WD touring & rally car lightweight master pins
• 53095 - 3x10mm titanium tapping screw (10pc.)
• 53056 - Pin type wheel adapter
• 50357 - 22T, 23T AV pinion gear set (just the 23T gear in this set works with the TL-01)
• 50356 - 20T, 21T AV pinion gear set (just the 21T gear is compatible with all the TL-01)
