Tamiya 58294 - 1/10 R/C High Performance F201 w/Original  [58294]

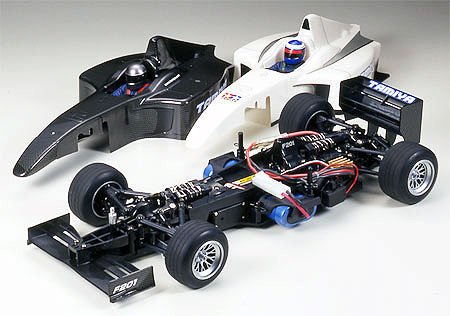

This is the 1/10 Scale Electric Powered, Radio Controlled, 4 Wheel Drive
Tamiya F201 Chassis On-Road vehicle Kit.

FEATURES:

Chassis: Monocoque plastic F201 kind.
Drive: Four wheel shaft drive.
Motor: RS 540 sport tuned.
Ball Bearings: Complete set included.
Shocks: Oil-filled synthetic bodied.
Gearbox: Closed front side and rear.
Differentials: Planetary gear.
Transmission: Single-speed.
Tires: 1.18" (30mm) tread width, 2.4" (62mm) outer diameter, 1.5"
(38mm) inner diameter plastic treaded.
Wheels: 1" (25.5mm) width, 1.6" (40mm) inner diameter grey plastic
spoke.
Speed Control: forced, use electronic type for most useful performance.
Bumpers: Front and rear black plastic.
Suspension: Adjustable.
Camber Tie Rods: Adjustable. Camber could be the angle at which the tires
sit vertically.
Steering Tie Rods: Adjustable. Caster/Toe-in relates to the angle
that the tires point inwards as viewed from above.
Steering: Bell-crank kind.
Servo Saver: Included.
Body: One clear plus one Lexan Carbon Fiber Pattern human anatomy with black
plastic back spoiler.

INCLUDES: One Tamiya F201 Chassis with oil-filled shocks, 540 stock engine,
one clear and another polycarbonate patterned body, treaded rubber
tires, foam inserts, synthetic mesh wheels, guidelines, antenna
tube, decal sheet, hardware, one driver helmet for each human body,
20 tooth metal pinion gear, 55 enamel synthetic spur gear, shock oil.

NEEDS: Radio: 2-Channel with one servo.
Radio Batteries: (8) AA size
Speed Control: Electronic.
Battery: 6-cell flat with standard connector, 7 cellular won't fit.
Charger: AC/DC timed or peak for 6-cell battery
Paint: Spray or brush-on for polycarbonate plastic bodies.
Misc. Things: Building and track gear

SPECS: VEHICLE-
Length: 16.7" (425mm)
Width: 7.7" (196mm)
Height: 3.3" (100mm)
Weight: 3.3 lbs (1480g)(approx.)
Wheelbase: 11.2" (280mm)
Gear Ratio: 2.75:1
Tires- Front and back: 1.18" (30mm) tread width, 2.4" (62mm) outer
diameter, 1.5 (38mm) inner diameter rubber treaded.
BODY-
Length: 14.5" (368mm)
Width: 6.25" (159mm) at cockpit (widest point)
1.25" (32mm) at from wheels (thinnest point)
Height: 3.34" (85mm)

REMARKS: For Substitution Ball Bearings usage:
Qty. Size Location Bearing Set Qty.
(4) 10 x 15mm Ball Diffs
(4) 8 x 5mm Ball Diffs
(2) 8 x 12mm Gearbox
(1) 5 x 11mm Gearbox
(1) 5 x 10mm Gearbox
(2) 10 x 15mm back Uprights
(2) 8 x 5mm Steering Arms
(2) 10 x 15mm Front Uprights
(2) 5 x 11mm Drive Shaft
(1) 5 x 10mm Drive Shaft
(1) 5 x 8mm Drive Shaft
(4) 6 x 12mm tires
