Tamiya 58297 - 1/10 RCC Raybrig NSX 2002 (TA04-R)  [58297]

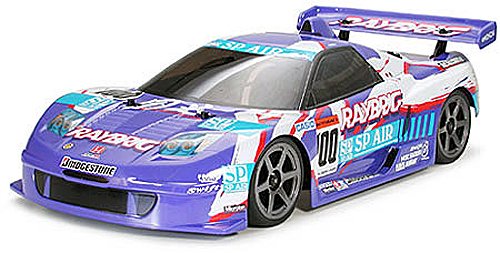

The RAYBRIG NSX 2002 of Team Kunimitsu with MOONCRAFT is notorious for tearing up the track on Japan GT Championship (JGTC) scene. Through the 2nd battle in SUGO the equipment featured a characteristic induction box fixed to the roof. The Raybrig of Team Kunimitsu with MOONCRAFT ended up being also understood for its vivid azure and white color.

In regards to the model

The TA04-R Chassis Is Completely Prepared for One Purpose Only: to Race.

Double-deck framework of chassis features carbon reinforced resin reduced deck and full carbon top deck for increased durability. Chassis employs 2-belt 4WD with a full group of ball bearings also ball differential gears for optimum drive efficiency. With a full variety of choice components and suspension which can be fine-tuned, this R/C framework stays real to pure racing. (engine perhaps not included)

Basic Specifications

• General size: 420mm
• General width: 189mm
• Total height: 123mm
• Min. Clearance: 5mm
• Body weight completely equipped: 1,575g (Measurement includes TP-S3003 servo, CPR device and RC2400SP Battery)
• Wheelbase: 257mm
• Tread F/R: both 166mm
• Chassis Material: Carbon/Carbon fibre strengthened nylon
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component Suspension System
• Front and Back Double Wishbone
• Caster Angle-F/R: 6deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: 0 deg. adjustable/4deg
• Damper: F/R TRF Damper
• Transmission Type: Belt Mid-ship Full-time 4WD
• Gear Ratio: 5.69:1 (kit standard)
• Diff. gear system: F/R Ball Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks

Needed Things (Sold Individually)

• Body Type 540 motor
• R/C Unit:Adspec GT-I or FET 2-channel R/C device with electronic rate control
• Battery: Tamiya 7.2V Racing Pack
