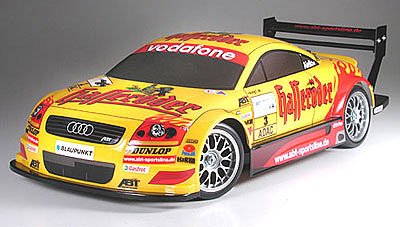

Tamiya 58300 - 1/10 RC ABT Audi TT-R DTM (TA04SS-W/BB/BODYx2)  [58300]

•
  The most popular ABT Audi now replicated as an R/C automobile. This model is founded on the brief wheelbase TA04-SS chassis. The TA04-SS chassis has been developed from TA04-S framework and features a shortened wheel base with specially designed suspension system hands. The wheel base happens to be reduced 10mm to provide sharper turn capability. The agility regarding the TA04-SS will provide you with real R/C excitement.
• Included are a couple of types of polycarbonate bodies, a light one and a regular one, that accurately reproduce the rounded type of the actual automobile. Stickers for 5 different markings on yellow or blue base color will also be the main kit.

Specs and Features:

• Chassis Type: TA04-SS
• Scale: 1/10
• Length: 17.40 inches (442mm)
• Width: 7.44 inches (189mm)
• Wheelbase: 9.72 ins (247mm)
• Front Tread: 6.38 ins (162mm)
• Back Tread: 6.38 inches (162mm)
• Weight: 3.59 lbs. (1630g)
• Chassis: ABS Tub
• Suspension: 4 wheel separate
• Damper Type: vinyl coil-over oil filled
• Drive Train: 4WD dual belt
• Gear Ratio: 7.08:1
• Differential Type: Bevel gear
• Engine: Electric 540 (included)
• Wheels & Tires: Mesh/slick
• Physical Stature: Clear/Polycarbonate
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Steering Tie Rod: 3 component
• Suspension: Front and Back Double Wishbone
• Caster Angle-F/R: 10deg/2deg.
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg.
• Damper: F/R CVAMinill
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R slicks
• Speed Controller: electronic rate controller(Not included)

Needs:

• Broadcast: 2-channel with 2 standard servos
• Broadcast Batteries: Eight AA size
• Engine: 540 size
• Battery: 6-cell flat with standard connector, 7 mobile will not fit
• Charger: AC/DC timed or top for 6-cell battery pack
• Paint: Polycarbonate for body
• Misc. Items: Building and track gear

Free Parts & Hop Up Options:

• 53452 TA04 Aluminum gear hub
• 53456 TA04 Turnbuckle upper supply set
• 53457 TA04 Turnbuckle tie-rod set
• 53458 TA04 Racing hub provider set
• 53459 TA04 Ball bearing set
• 53460 TA04 Carbon damper stay (front)
• 53461 TA04 Carbon damper stay (rear)
• 53463 TA04 minimal friction gear (front)
• 53464 TA04 minimal friction belt (back)
• 53465 TA04 Carbon upper deck
• 53466 TA04 Carbon lower deck
• 53472 TA04 Toe-in back uprights
• 53426 TA04 Racing body mount set
• 53427 TA04 intense suspension arm
• 53428 TA04 Hard backside upright
• 53436 TA04 Ball differential unit
• 53437 TA04 Aluminum engine heatsink
• 53438 TA04 Universal shaft set
• 53439 Anti-wear grease
• 53440 On-road tuned spring set
• 53441 TA04 color stabilizer set (front)
• 53442 TA04 color stabilizer (backside)
• 53450 TA04 center one-way device
• 53420 0.4 Pinion gear (40/41T)
• 53421 0.4 Pinion gear (42/43T)
• 53422 0.4 Pinion gear (44/45T)
• 53423 0.4 Pinion gear (46/47T)
• 53424 0.4 Pinion gear (48/49T)
• 53425 0.4 Pinion gear (50/51T)
