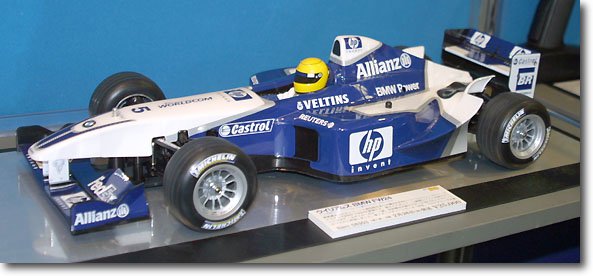

Tamiya 58303 - 1/10 WilliamsF1 BMW FW24 ( F201 Chassis )  [58303]

Tamiya is proud presenting the 1/10 scale R/C replica associated with the WilliamsF1 BMW FW24. This impressive device driven by R. Schumacher and J.P. Montoya fought fiercely during a year ago's F1 season, and excelled on high-speed circuits. Now you can drive your own personal Williams and prove your skill.

The F201 Chassis

• Ultra-dynamic driving along with the ultra-controlled maneuvering of Shaft 4WD Mid-ship mounted engine transfers power to four wheels via propeller shaft for simple and stable driving.
• Inboard Suspension System 4-wheel double wishbone suspension employs four oil dampers on top part of monocoque framework. This high-tech searching suspension closely resembles that of the actual Ferrari F2001.

Basic Specifications

• Chassis Type: F201
• Scale: 1/10
• Overall Length: 428mm
• Overall Width: 196mm
• Overall Height: 100mm
• Minimum Clearance: 5mm
• Weight Fully Equipped: 1,480g (including TP-S3003 servo, CPR Unit, RC2400SP battery)
• Wheelbase: 280mm
• Tread (f/r): 164/159mm
• Chassis Material: ABS resin
• Chassis Type: monocoque
• Steering Tie Rods: divided in two segments
• Suspension (front and rear): double wishbone
• Caster Angle (f/r): 9deg./0deg.
• Camber Angle (f/r): variable
• Toe Angle (f/r): variable
• Dampers (f/r): oil dampers
• Drive Train: shaft driven midship full-time 4WD
• Gear Ratio: 5.88:1(kit standard)
• Diff Gear System (f/r): ball diff
• Full Ball Bearings: (24 in all)
• Speed Controller: electronic rate controller
• Tire Width/Diameter: 37mm/64mm
• Tread Pattern (f/r): grooved tires
• Motor: Includes Tamiya Sport-Tuned motor

Required Things (Sold Separately)

• R/C device: Adspec GT-I, or FET 2-channel R/C product with electronic speed controler
• Battery: Tamiya 7.2V Racing Pack
