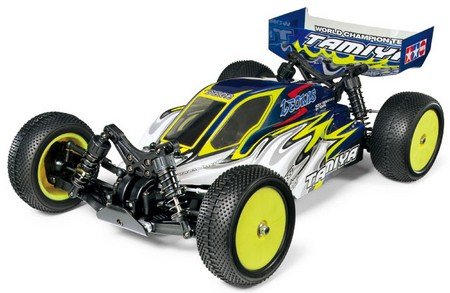

Tamiya 58507 - 1/10 RC DB02 Leonis - DB02 - 4WD High Performance Off Road Racer  [58507]

• [Tuner-Styled Off-Road Racer]This 1/10 scale R/C buggy Leonis features the newly-designed DB02 chassis, which has a highly-efficient shaft-driven 4WD system and exceptional controllability as a result of a horizontally-positioned engine nearby the center regarding the framework. It also features an aerodynamic human anatomy shell which was created by famous Japanese racing team and tuning firm, TOM'S. The "cab forward" human anatomy follows design styles entirely on real race automobiles to reduce drag plus direct smooth airflow to your back wing to help expand enhance the machine's performance.
• [Original Shaft-Driven 4WD Layout]The balanced DB02 has a drivetrain design which makes use of four bevel gears to transmit the motor capacity to the front and rear gearboxes via propeller shafts. A highly durable one-piece die-cast engine mount holds the engine and spur/bevel gears while front/rear enclosed gearboxes feature ball differentials which utilize the same inch-sized diff balls as those found in the high-end TRF502X. The confirmed 4-wheel double wishbone suspension system through the DB01 is equipped with CVA surprise units. An array of current DB01 Option components are also suitable for the DB02 make it possible for fine setting modification.

Specs and Features:

• 1/10 scale R/C construction kit.
• Polycarbonate human anatomy created by Toyota Tuner TOM'S.
• Polycarbonate rear wing included.
• Shaft-driven 4WD layout
• Engine is put horizontally at the center associated with chassis to give optimum energy transmission including security and balance.
• Durable Fiberglass Reinforced Vinyl bath tub chassis is mated with front side & back top braces to supply additional chassis rigidity.
• Front & rear compact gearboxes are equipped with ball differentials.
• The proven 4-wheel double wishbone suspension is from the DB01 chassis (suspension system hands and axles come from the DB-01 framework)
• Plastic human body CVA surprise devices are included
• 3-piece steering linkage
• Front & back Dual Block Tires and dish wheels included.
• Battery pack lies toward the trunk for better stability while jumping.
• Compatible with 7.2 volt stick-type battery pack packs
• Length: 410mm ,Width: 248mm ,Height: 139mm
• Weight: 1,165g (excluding R/C devices, battery pack)
• Wheelbase: 280mm
• Tread: 214mm (front side), 210mm (back)
• Tire Width/Diameter: 31/89mm (Front), 42/89mm (back)
• Fiberglass-Reinforced Nylon Resin Bathtub Frame & Upper Braces
• Gear Ratio=8.16:1 (when used in combination with separately offered 23T pinion gear)
• Requires a digital rate Controller (sold individually)
• Type 540 Motor (offered individually)
• Tested suspension through the DB01 has CVA shock units.
• 4 steel bevel gears housed inside one-piece die-cast motor mount send engine capacity to propeller shafts.
• Battery pack is put within rear for exemplary chassis balance. Both right and split battery packages can be utilized.
