Tamiya 58598 - 1/10 Raybrig NSX Concept-GT (TB-04 Chassis)  [58598]

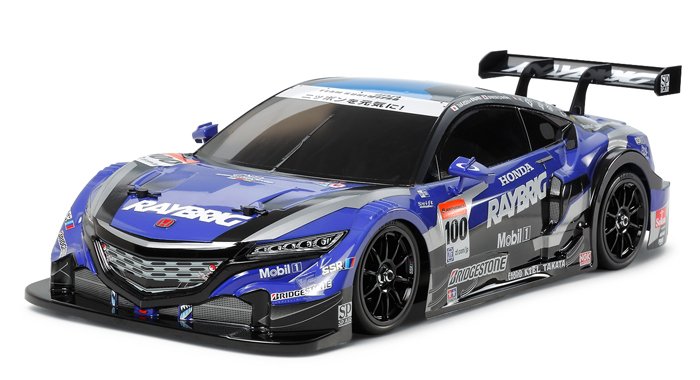

• This is actually the 3rd release on Tamiya's RC High Performance TB-04 framework platform. The model illustrates the RAYBRIG NSX CONCEPT-GT, a car produced by Honda to race into the 2014 Japanese Super GT Series. The hi-tech race car features a 1.6-liter turbocharged direct injection motor with anti-lag, plus a mid-ship design that optimizes circulation of car's weight, particularly taking into consideration its unique hybrid system.

  The TB-04 is a 1/10 scale 4WD device that incorporates a drive-shaft down the biggest market of the chassis to engage the front and back gearboxes. The differentials inside the gearboxes are newly designed as they use a sealed gear differential system whereby the inner gears motion is controlled by various viscosity differential liquids. The double-wishbone suspension system utilizes the same "short reversible" type that has been applied to the TB-03, TA-05 Version II, TA-06 and the TRF (Tamiya rushing Factory) 416 and 417 World Championship devices. The TB-04 also contains "IFS" (inboard front suspension) whereby the front shocks are placed horizontally and low towards chassis, so that low profile sports vehicle body shapes are accurately reproduced without losing any practical scale look.

Specifications:

• Scale 1/10

• Construction kind: Assembly kit

• Terrain usage: On-Road

• Drive-train: 4WD

• Drive kind: Gearbox

• Drive line: Dog bone

• Differential kind: Sealed oil-filled gear

• Suspension: Fully independent dual wishbone

• Steering process: Bell-crank

• Shock damper: Oil-filled damper

• Shock damper product: Plastic

• Tire type: Rubber

• Tire tread: Slick

• Body material: Polycarbonate

• Chassis material: FRP (Fiber Reinforced Vinyl)

• Electronic Speed Control (ESC): Perhaps Not included

• ESC model: N/A

• LED Light buckets: No

• Light-emitting Diode lights: No

• Engine: maybe not included

• Bearings: Sealed ball bearing

• Adjustable camber: Yes

• Adjustable toe perspectives: Front and backside

• Adjustable ground clearance: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Yes

• Adjustable track width: Yes

• Adjustable surprise angle: Yes

• Unique function 1: brief reversible Suspension Arm System

• Special feature 2: IFS (Inboard Front Suspension) featuring push-rods

• Special function 3: The model uses 6-degree hub carriers

• Special feature 4: Length: 475mm, width: 188mm. Wheelbase: 257mm

• Special function 5: Separate ABS molded parts are included to replicate the dynamic back wing and unique home mirrors

• Special function 6: Includes human anatomy markings and masking stickers for use whenever painting the model

• Needs A: 7.2 battery pack & charger

• Requires B: 2-channel radio gear & electronic speed control

• Requires C: Motor

• Needs D: Polycarbonate paint
