Bug Rally!

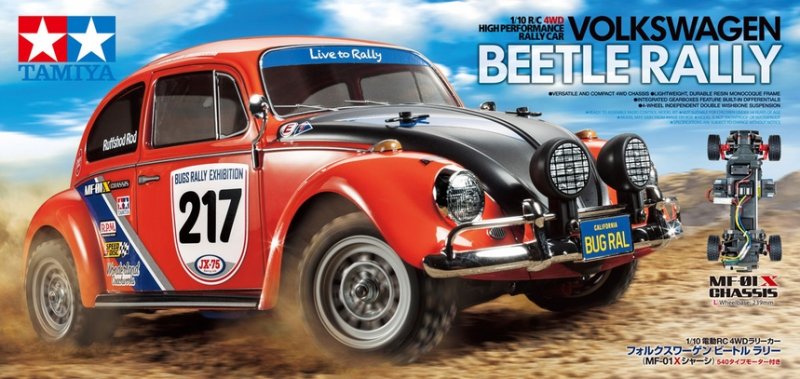

Manufacturing regarding the Volkswagen Beetle (Type 1) started in 1949 and as a result of its distinctive rounded kind with no-frills interior, it became a familiar sight across the world. Running on a rear-mounted flat 4 motor, the lightweight Beetle offered superlative reliability and uncomplicated upkeep, which helped result in the automobile a fixture in the international rally circuit from the 1950s through to the 1980s. This R/C model set up kit is prompted by such rallying Beetles. Its lightweight polycarbonate human body artfully catches the Beetle kind, with metal-plated parts recreating bumpers and side mirrors. Stickers and light pod components give the model a rallying air.
MF-01X – Compact 4WD At Home on a selection of Surfaces
Based around a tough monocoque framework with integrated gearboxes, this compact 4WD framework offers a thrilling drive whether you are taking it on road or flat dirt areas. It features a rear-mounted engine, with gear-driven back tires and a propeller shaft using capacity to leading. Both front side and back gearboxes have differential gears. The battery power location within the framework center secures excellent balance, while 4-wheel separate double wishbone suspension employs friction dampers. Off road capable M-05Ra framework uprights and hub carriers, plus rally block tires will also be included.
The MF-01X chassis offers three various wheelbases. This model utilizes the L (239mm) setup.
Power from the rear-mounted engine is supplied by gear towards the back diff, and propeller shaft to the front side.
4-wheel separate double wishbone suspension is cushioned by friction dampers.
Rally block tires take hand to offer great hold, even on possibly slippery dirt surfaces.
Requirements:
- Length: 397mm, Width: 163mm, Height: 151mm
- Wheelbase: 239mm (L)
- Tire Width/Diameter (Front & Rear): 26/60mm
- Tread (Front & Rear): 138mm
- Monocoque Frame
- Shaft-Driven 4WD
- 3-Bevel Differential Gears
- 2-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front & back Friction Dampers
- Gear Ratio = 9.5:1
- Type 540 Motor
- Electronic Speed Controller (offered separately)
Separately Necessary Products:
- 2-Channel R/C Unit with ESC
- Battery Pack & Charger
- R6/AA/UM3 batteries for transmitter
