Description

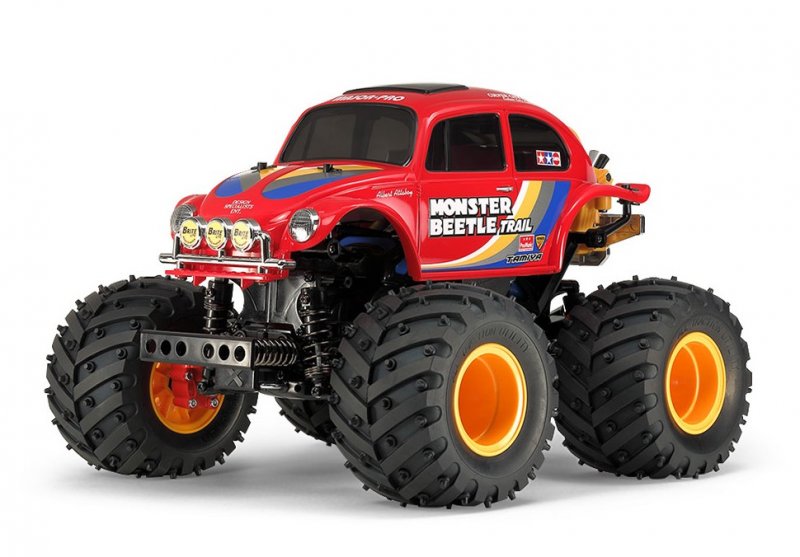

The classic Tamiya Monster Beetle is an iconic R/C kit. This version takes the classic body, shrinks it to an inferior scale, and mounts it on a variant GF-01 chassis called the GF-01TR!

The GF-01TR fits the gear-driven GF-01 chassis with reduction gears (also referred to as portal axles). This modification allows the hobbyist to better transverse path landscapes as it lifts the base of the framework to better clear hurdles that could high center the vehicle and render it stuck.

GF-01TR Chassis:
This gear-driven 4WD chassis is based around a lightweight and tough monocoque framework, with power supplied by the centrally-positioned motor. Decrease gears on each axle sluggish drive shaft rotation for enormous traction, great ground approval, therefore the power to undertake tough off road surface. The gearbox is sealed to safeguard from dust and debris, and integrated into the framework; integral differential gears provide superb traction and durability if you use included diff putty. 4-wheel double wishbone suspension makes use of friction dampers, while a 2-piece tie rod steering setup utilizing the servo in the left gives exceptional reaction. Yellow wheels are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior padding and grip. The chassis utilizes a ‘square’ setup with similar tread and wheelbase lengths.

• 1/14 scale R/C model installation kit. Length: 333mm, width: 270mm. Wheelbase: 274mm.
• Body is molded in red ABS Plastic. It depicts a customized Beetle with gaping fenders, triple auxiliary lights and a shortened tail.
• Metal-plated parts for headlights, auxiliary lights and motor.
• The model is situated upon the tough, decrease gear-fitted GF-01TR variant chassis.
• 37.35:1 gear ratio (with the kit-standard 18T pinion gear) offers great drive. The model can be compatible with 20T pinion gears (for a 33.61:1 gear ratio).
• Yellowish tires are complimented by 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip.
• Includes 540-type motor.
• ESC perhaps not included
• Requires:2-Channel Radio, servo, 7.2-7.4volt round shape battery power & appropriate charger, and Tamiya TS paints.

Specification:

Adjustable Gear Ratio : Yes
Bearings : vinyl bushing
Body Material : ABS Plastic
Body Stickers : Included
Chassis Material : ABS Plastic
Chassis Type : GF-01 TR
Construction Type : Assembly Kit
Differential Type : Gear
Drive Type : 4WD
Electronic Speed Control (esc) : perhaps not included
Motor : Brushed 540 Type
Requires A : • needs: 2-Channel Radio, servo, ESC, 7.2-7.4volt circular form battery power & compatible charger, and Tamiya TS paints.
Scale : 1/14
Shock Damper : Friction damper
Suspension : Fully Independent Double Wishbone
Terrain Use : Multi-Purpose
