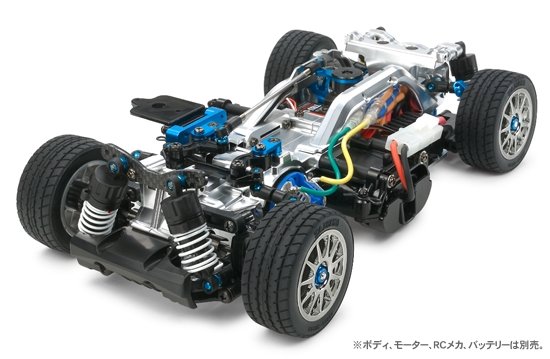

Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit  [84204]

Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit
Price:
USD$227.63
Brand:
Tamiya
Model:
84204
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - M-Chassis Cars category
Write a review
alt="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit" title="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit"
alt="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit" title="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit"
alt="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit" title="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit"
alt="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit" title="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit"
alt="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit" title="Tamiya 84204 - 1/10 RC M-05 S-Spec Chassis Kit"
  • This really is a special restricted edition form of the greatly popular M-05 framework. Its particularly set up for the 210mm wheelbase, which is great for technical circuit layouts. It comes standard with high-performance Choice Parts including an exclusive aluminum back suspension mount and counterweight.

Other Included Option Parts:

  • Item 51000 Hi-Torque Servo Saver (Black)
  • Item 54121 Aluminum Horn for Hi-Torque Servo Saver
  • Item 54178 M-05 Aluminum back Upright
  • Item 54179 M-05 Ball Bearing Set
  • Item 54193 M-05 Aluminum Steering Post
  • Item 50746 C.V.A. Super Mini Shock Units
  • 3 forms of damper springs
  • Item 53159 4mm Aluminum flange lock peanuts (blue)
  • Item 53539 5.5mm Aluminum spacer set
  • Item 53640 5mm Aluminum ball nut (Blue)
  • Item 53642 5mm Aluminum ball connector (Blue)
  • CVA Shock Unit Super Mini (Black)
  • Aluminum Ball Connectors (Blue)
  • 5mm Aluminum Ball Connector Nuts (Blue)
  • 4mm Aluminum Flange Lock Nuts (Blue)

Special parts:

  • Aluminum Rear suspension system Mount (Toe-In 1 degree) This Aluminum Rear Suspension Mount is exclusive to your S-Spec Chassis Kit. It provides an additional toe-in angle of 1 degree and overall toe-in angle will become 2.5-3 degree. Kit also contains Rear Aluminum Uprights. (item 54178)
  • M-05 Aluminum Heat Sink Motor Plate (Counterweight/Transponder Mount) The Aluminum Heat Sink engine Plate is exclusive on S kit and serves as a counterweight to produce the chassis with greater stability and security. It may increase as a mount for attaching transponder stays.
  • Carbon Front Damper Stay
  • Semi-Gloss Finish Metal-Plated principal Frame
  • Black Metal-Plated 11-Spoke Wheels with 60D Radial Tires
  • TRF Damper Short Springs (White) (Soft/Medium/Hard)

Specs and qualities:

  • General length: 299mm
  • Overall width: 165mm
  • Tread: 138mm
  • Wheelbase could be chosen among 3 kinds: 210mm, 225mm, 239mm (Note: kit included options and features optimize the 210mm wheelbase)
