Tamiya 84335 - 1/12 RC RM-01X Chassis Kit RM01 [84335]

Price:

USD$205.90

Brand:

Tamiya

Model:

84335

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Pan Cars category

Write a review

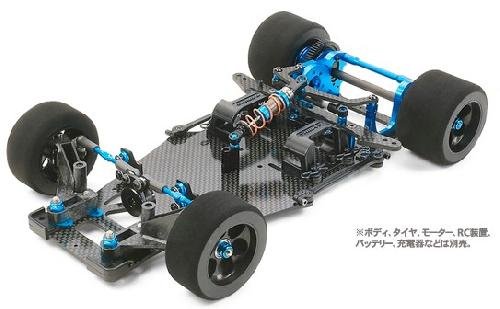

The Direct-Drive 2WD RM-01 chassis is a 1/12 race vehicle platform that features independent coil springtime suspension and a PBLR (Pillow-Ball-Rear-Link) suspension system. The platform is ideal for 1/12 club racing for both carpeting and asphalt race songs. Formerly released as a basic construction kit with iconic race car systems such as the Toyota Tom's 84-C, Porsche 956 and Mazda 787-B, the RM-01X is a special "limited edition" battle kit including a large selection regarding the Hop-Up-Options available for the platform. The components included bring out its maximum performance within track. FRP parts are replaced with carbon components to enhance chassis general rigidity, and an aluminum motor mount provides increased engine attachment rigidity for optimum energy transmission. In Addition, carbon reinforced front suspension hands provide optimized suspension effect.
54341 RC RM01 Alum Pitch Damper Set
54351 RC Carbon Damper Mount Plate
54353 RC Carbon Rear Body Mount Plate
54354 RC Alum Type 380 Engine Adapter
54356 RC Aluminum Motor Mount
54364 RC RM01 Carbon Lower Deck
54365 RC RM01 Carbon Lower Brace
54369 RC Aluminum Horn
54427 RC RM01 Carbon Back Shaft
54456 RC Front Skid Angle Spacer Set
54413 RC F104 Aluminum Roll Damper
54461 RC RM-01 Carbon Rein N Parts Front Suspension Arm
Other included components: 4mm Titanium Screws, 3mm Hex Screws, Hi-Torque Servo Saver, Aluminum wheel peanuts and Aluminum turnbuckle shafts

Specs and qualities:

Construction type: assembly kit
Terrain usage: on-road
Drive-train: 2WD RWD
Drive kind: pinion to spur gear
Drive line: solid axle
Differential kind: ball pressure plate
Suspension system: separate front/solid axle back
Steering process: direct servo
Shock damper: oil-filled damper
Shock damper material: aluminum
Tire kind: not included
Tire tread: slick
Body product: maybe not included
Chassis material: carbon dietary fiber plate
Electronic Speed Control (ESC): perhaps not included
ESC model: n/a
LED Light buckets: no
LED lights: no
Motor: maybe not included
Bearings: shielded ball bearing
Adjustable camber: fixed
Adjustable toe perspectives: front side just
Adjustable ground approval: yes
Adjustable gear ratio: yes
Adjustable wheelbase: fixed
Adjustable track width: fixed
Adjustable surprise angle: yes
Special function 1: Pivot-Ball Link Rear (PBLR) suspension system
Unique feature 2: Attachment of both hex-hub-secured and 3-screw-secured wheels are feasible
Special function 3: Aluminum diff housing allows ball differential modification without detaching wheel.
Special function 4: Key Hop-Up-Option components a part of kit.
Requires: 1S battery pack & charger
Requires: wheels, tires, human body set, motor, esc
Requires: 2-channel radio gear
