Tamiya 84370 - 1/10 RC DF-03 MS Chassis Kit  [84370]

The mid-range shaft-driven 4WD buggy DF-03 framework was created from racing data, and also the DF-03 MS kit got its abilities one action further by fitting a range of option components. Use of a slipper clutch, assembly universal shaft and center one-way set boost drivetrain efficiency and provide razor-sharp management, while 4-wheel double wishbone suspension system enables a selection of settings.

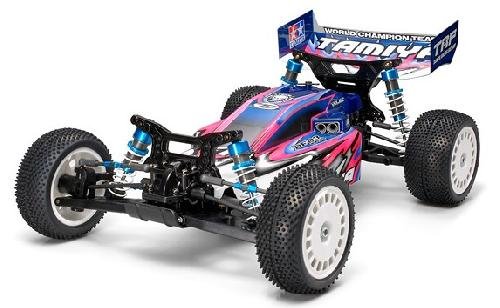

This limited version buggy features a chassis that is laden up with performance boosting components and a Dark Impact human anatomy shell with unique markings created by TRF driver Satoshi Maezumi.

These Hop-Up-Options are included:

• 53791 DF-02 Assembly Universal Shaft
• 53924 DF-03 Heat Sink Bar Set
• 53925 DF-03 Slipper Clutch Set
• 53926 DF-03 Aluminum Damper Set
• 53931 DF-03 Center One-Way Set
• 53940 DF-03 Intense Turnbuckle Shaft Set
• 53941 DF-03 Aluminum Turnbuckle Steering Rod
• 53948 DF-03 Aluminum One-Piece Propeller Cup Joint
• 53949 DF-03 Lightweight Battery Stopper Pin
• 53984 Buggy Racing Wing
• 51000 Hi-Torque Servo Saver (Black)

Specification

• Scale : 1/10
• Construction kind : set up kit
• Terrain usage : off-road
• Drive-train : 4WD
• Drive kind : shaft
• Drive line : dog bone tissue
• Differential type : ball pressure plate
• Suspension : fully separate double wishbone
• Steering apparatus : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : aluminum
• Tire type : perhaps not included
• Tire tread : n/a
• Body product : Polycarbonate
• Chassis material : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• Light-emitting Diode lights : no
• Engine : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front just
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes
• Special feature 1 : Length:388mm, Width: 250mm , Height: 152mm, Wheelbase:272mm, Tread:217mm (front side) & 203mm (back)
• Special feature 2 : 2 kinds of wing and marking stickers are included in the kit.
• Needs A : 7.2 battery pack & charger
• Needs B : 2-channel radio gear, ESC, motor
• Needs C : polycarbonate paint
• Needs D : tires
