Tamiya 84375 - 1/10 RC XV-01 Chassis Kit Long Damper Spec  [84375]

Tamiya 84375 - 1/10 RC XV-01 Chassis Kit Long Damper Spec
Price:
USD$163.77
Brand:
Tamiya
Model:
84375
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Rally - Electric Powered category
Write a review

This restricted edition form of the versatile XV-01 chassis is initiated to use long dampers and offers a much better off road driving experience, while still keeping similar base once the initial XV-01.

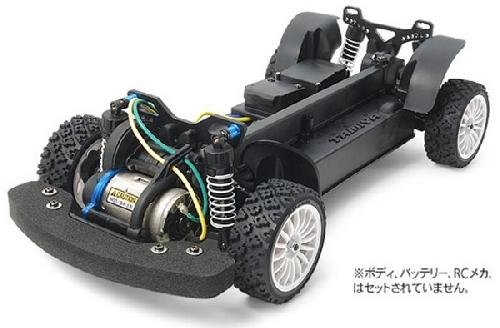

The 4WD XV-01 chassis offers dynamic R/C rally driving on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with front side and back enclosed gearboxes designed with gear differential units. The box-like main frame incorporates covers and wheel well liners to provide superb protection against dirt and debris. The 4-wheel double wishbone suspension ensures lots of suspension system stroke and ground clearance and is matched with Rally Block Tires on replica tires for realistic control

  • Scale : 1/10
  • Construction kind : set up kit
  • Terrain usage : multi-purpose
  • Drive-train : 4WD
  • Drive type : Dual-Drive
  • Drive line : dog bone
  • Differential type : sealed oil-filled gear
  • Suspension : completely independent dual wishbone
  • Steering device : bell-crank
  • Shock damper : oil-filled damper
  • Shock damper product : plastic
  • Tire kind : rubber
  • Tire tread : rally block
  • Body material : maybe not included
  • Chassis material : plastic
  • Electronic Speed Control (ESC) : maybe not included
  • ESC model : n/a
  • LED Light buckets : no
  • LED lights : no
  • Motor : 540-brushed type
  • Bearings : shielded ball bearing
  • Adjustable camber : yes
  • Adjustable toe perspectives : front and rear
  • Adjustable ground clearance : yes
  • Adjustable gear ratio : yes
  • Adjustable wheelbase : fixed
  • Adjustable track width : fixed
  • Adjustable surprise angle : yes
  • Special feature 1 : Wheelbase: 257mm
  • Special feature 2 : The chassis is equipped with newly-designed front and rear damper remains allowing maximum exploitation for the extensive swing given by the CVA mini oil dampers.
  • Special function 3 : Suspension supply parts are made to let the automobile to perform optimally utilizing ground approval of 10mm or more, making it ideally-suited to off road running.
  • Special function 4 : The XV-01 framework makes use of a front-motor, belt-driven 4WD design using the drive belt, battery pack and R/C equipment protected from dust and debris by covers.
  • Special feature 5 : appropriate for Lancia Delta Integrale, Subaru Impreza WRX STI Team Arai, Subaru Impreza WRC 2008 or Mitsubishi Lancer Evo. X systems (sold separately).
  • Requires A : 2-channel radio gear & electronic speed control
  • Requires B : 7.2 battery & charger
  • Requires C : Body set
  • Requires D : polycarbonate paint
