Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit  [84390]

Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit
Price:
USD$0.00
Brand:
Tamiya
Model:
84390
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category
Write a review
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"

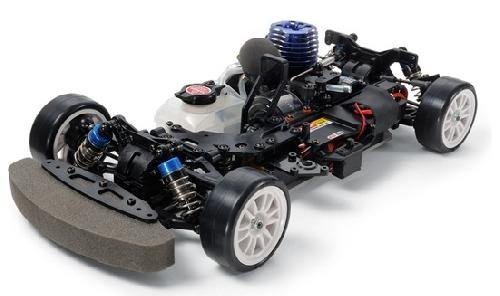

This kit sees the TG10-Mk.2 glow-engine R/C framework fitted with a fresh engine!

The FS-12FZ Motor

The Tamiya FS-12FZ motor has an ability of 2.1cc and features tapered sliding carburetor, plus a simple yet effective heat sink for heat dissipation. It provides a fantastic combination of linear torque and high output, while being simple to setup and maintain. It features a 2-speed transmission.


Features:


  • The 2.1cc Tamiya FS-12FZ motor is equipped with a 2-speed transmission, and could be started with minimum hassle using the handily-sized recoil beginner unit.
  • Tapered sliding carburetor helps ensure that the framework enjoys linear torque without compromising the high output required for hi-speed circuits.
  • A durable polycarbonate cover is set up to protect the spur gears untilized inside 2-speed transmission.
  • The slimline TM-8 exhaust drastically cuts the chances of connection with the body shell.
  • 4-wheel double wishbone suspension system makes use of ball connectors. Oil dampers feature aluminum cylinders.

Specifications:


  • Exemplary security is given by a hardcore double-deck frame with 3mm-thick duralumin lower, and resin top decks.
  • The effective 2.1cc FS-12FZ radiance engine makes this framework excellently-suited to high-speed circuits, while nevertheless supplying linear torque.
  • Length: 377mm
  • Wheelbase: 257mm
  • Double Deck Chassis (3mm-Thick Aluminum Lower & 3mm-Thick Reinforced Nylon Resin Upper Decks)
  • Shaft-Driven 4WD
  • F/R Tread 172-176mm (adjustable)
  • Differentials: Front 4-Bevel, Back 2-Bevel
  • Front & Back Fluorine-Coated Aluminum Dampers
  • Gear Ratio = 7.02:1 (first Gear), 5.42:1 (2nd Gear)
  • TM-8 Exhaust
  • FS-12FZ motor (2.1cc)
  • 75cc Fuel Tank

Separately Required Products:

  • 2-channel R/C system
  • Glow Engine gas (nitromethane content: 16-20per cent)
  • Fuel Pump
  • Plug Heater
  • Body
  • Tires
