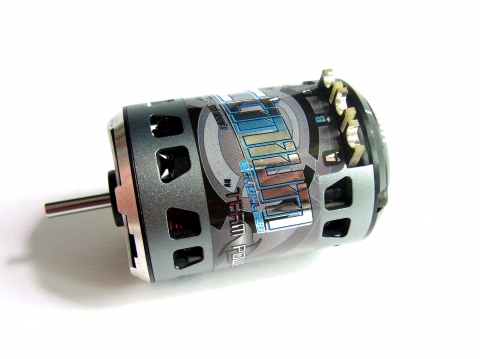

Team Powers Actinium Brushless Sensored Motor  [TP-BLM-XXX100ACT]

• Design Specification: According To IFMAR/ROAR/EFRA/BRCA

• engine Dimensions (Diameter x Length) 35.8mm x 51mm

• Shaft Diameter: 3.17mm

• Magnet proportions (Diameter x Length): 12.5mm x 24mm(3.5turn-9.5turn), 12.3mm x 24mm(10.5turn-17.5turn)

• adjustable End bell with changing the output energy and torque associated with the engine

• body weight: 165g (5g lighter compared to old variation)

• Recommended RC Model vehicle: 1:10 model automobile, Buggy, MINI automobile

• Available Turns: 4T, 4.5T, 5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T

Enhanced features centered on Plutonium V1.0 motor:

• Come with choice 12.5mm roar spec rotor

• brand new type neodymium sintered rotor and venting convection system that may lower the heat by 5~10'C

• Simple for set up. Simply screw down 3pcs screw and sign up for the rotor straight with no need to dissembly the conclusion bell and sensor board

• Use low resistane and thicker wire for wiring that can emerge more power
