Team Powers XPS Pro Speed Control System V1.1 -140A (with setting card included) [TP-XPS/Pro-v1_1]

Price:

USD$127.49

Brand:

Team Powers

Model:

TP-XPS/Pro-v1_1

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category

Write a review

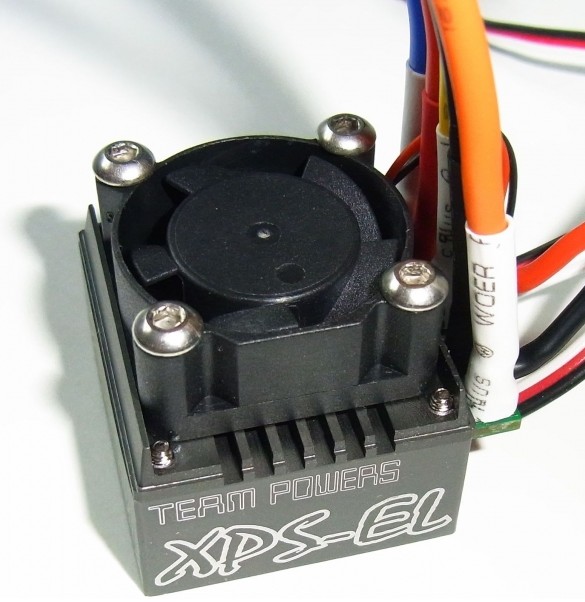

Team Powers XPS Pro Speed Control(140A) + Setting Card

Item No

TP-XPS/Pro-v1_1

Features:

Support along with kinds of sensored/sensorless brushless motors in RC model 1/10th, 1/12th vehicle & Truck
Support Running Mode: Forward with brake, Forward/Reverse, Forward/Reverse with Brake
Manual/Factory operating profile setting. For factory operating profile, it includes 9 level for modify competition and 4 amounts LCTS (linear control timing system) for battle competitions
make use of the pocket-size system card to program the controller settings
Multiple protection functions: Low voltage cut-off security, Over temperature security, Throttle sign loss security
Extra smaller size aluminum casing for cooling
additional battery pack output adaptor linking towards motor cooling fan

Techincal Specifications:

Model:		XPS- Pro	XPS-Sport	XPS-EL
Constant present:		140A	70A	35A
Burst present (10sec):		720A	400A	160A
Battery Input:	3.7V LiPo	2 cells	2 cells	2 cells
Battery Input:	1.2V NiMh/NiCd	4-6 cells	4-6 cells	4-6 cells
BEC Production:		Linear 6V/2A	Linear 6V/2A	Linear 6V/2A
Body weight (not included wiring& fan)		~42g	~41g	~40g
Dimension(L x W x H) mm (are the fan assembly to your ESC)		~32 x 30 x 28	~32 x 30 x 28	~32 x 30 x 28
Engine limit with 2cell x 3.7V Lipo Assume engine at 0 level timing		4Turn or over	6.5 Turn or higher	9.5 Turn or over

Setting Card Program Items includes:
