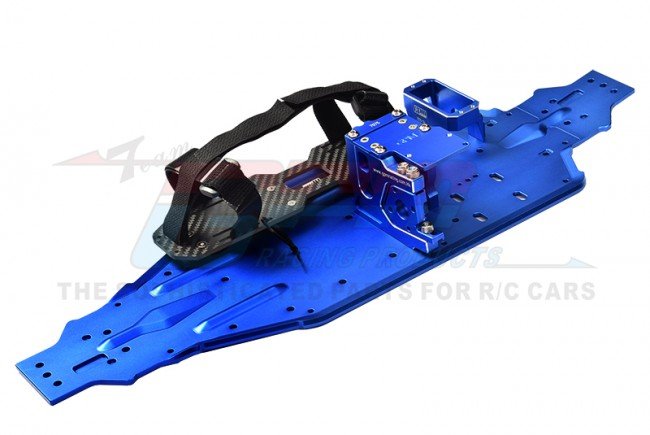

Packing Includes:
SLE016
Chassis Plate-1pc
GSLE0126A
Aluminum 7075-T6 repairing strip-1pc
Carbon Fibre battery panel-1pc
Square buckle Velcro-2pcs
Velcro-1pc
Servo mount-1pc
Flat mind Screw 4*10-5pcs
Flat Head Screw 3*10-6pcs
Flat mind Screw 3*6-1pc
Round Head Screw 3x12-4pcs
SLE038AN
Differential & motor mount-6pcs
Stainless metal flat head screw 4x12-5pcs
Stainless steel flat mind screw 3x14-2pcs
Stainless steel flat head screw 3x8-4pcs
Stainless steel round head screw 4x12-2pcs
Stainless steel round head screw 4x10-4pcs
Stainless metal round mind screw 3x8-2pcs
Stainless steel limit head screws 4*16-2pcs
Stainless metal cap head screws 3*12-1pc
Stainless metal washer 1*4*8-2pcs
Stainless steel washer 1*3*6-1pc
(Some screws are set up in the products)
Original Name / role No:
9522+9626+9584
Part Location:
Below front, center, back chassis+battery+Back of center differential
Product major function & usage:
Increase the tone of framework, impact-resistant and wear-resistant, and strengthen the body structure
Fixed battery
Stabilize center differential and motor
1. The material is upgraded to aluminum 7075-T6, the framework is thickened from 3.2mm to 4.0mm, rendering it more sturdy.
2. Upgrade the strengthened sides to 5mm thickness and incorporating the groove among in lowering bending.
3. There is a reserved place the extensive motor on electric chair. This means that GPM will also create a motor mount with this extended motor later.
4. GPM aluminum 7075-T6 servo mount and battery compartment integrated, the battery pack compartment retains the first quick-release voltage plate, that is convenient for disassembly and installation of the servo mount.
5. The fixing strip associated with the carbon fibre battery pack panel at the end is constructed of aluminum 7075-T6, which enhances the tone associated with the servo mount additionally the battery compartment.
6. The open design with Velcro works with different sizes of batteries, and adjustment is more versatile, therefore the battery just isn't very easy to fall down during use.
7. The opposite fast release variation works with aided by the installing 4985. 1717 as well as other engines, can be simply running on 8S.
8. The convenient fast release motor base is redeveloped by GPM to effectively stop the displacement of the motor.
9. The engine hole is reserved for 3mm/4mm, which can be appropriate for installing multiple forms of motors.
Note: This system calls for to use with ARRMA AR320422 receiver field.
Suitable Model:
TRAXXAS-1/8 4WD SLEDGE MONSTER TRUCK-95076-4
