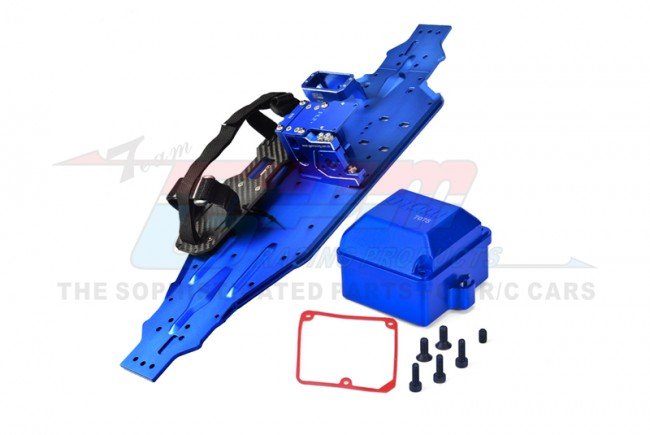

Packing Includes:
Chassis plate-1pc
Aluminum 7075-T6 repairing strip-1pc
Carbon fibre battery pack panel-1pc
Square buckle velcro-2pcs
Velcro-1pc
Servo mount-1pc
Flat Head screw 4*10-5pcs
Flat mind screw 3*10-6pcs
Flat mind screw 3*6-1pc
Round mind screw 3x12-4pcs
Differential & engine mount-6pcs
Stainless steel flat head screw 4x12-5pcs
Stainless Steel flat mind screw 3x14-2pcs
Stainless Steel flat head screw 3x8-4pcs
Stainless metal round head screw 4x12-2pcs
Stainless metal round head screw 4x10-4pcs
Stainless metal round mind screw 3x8-2pcs
Stainless metal cap head screws 4*16-2pcs
Stainless steel cap mind screws 3*12-1pc
Stainless metal washer 1*4*8-2pcs
Stainless metal washer 1*3*6-1pc
(All screw fixtures are set up regarding the goods)
Radio box-1pc
Grade 12.9 black colored limit mind screws 2.5x8-3pcs
Grade 12.9 black colored flat mind screw 3x8-2pcs
Screw shaft 3x5-1pc
Rubber sealing ring-1pc
Original Name / component No:
9522+9626+9584+AR320422
Part Location:
Below front, center, back chassis+battery+Back of center differential
Product major function & use:
Increase the firmness associated with framework, impact-resistant and wear-resistant, and bolster the human body structure
Fixed battery
Stabilize center differential and motor
The material is upgraded to aluminum 7075-T6, the framework is thickened from 3.2mm to 4.0mm, rendering it more sturdy.
Upgrade the strengthened sides to 5mm thickness and adding the groove in between in lowering bending.
There is a reserved position the extensive motor on the electric chair. It means that GPM will even create a motor mount because of this extended motor later.
GPM aluminum 7075-T6 servo mount and battery compartment incorporated, the battery compartment keeps the initial quick-release voltage plate, that will be convenient for disassembly and installing the servo mount.
The repairing strip associated with carbon fibre battery panel in the bottom consists of aluminum 7075-T6, which enhances the tone of this servo mount while the battery pack compartment.
The available design with Velcro works with different sizes of batteries, while the adjustment is more versatile, so the battery just isn't easy to fall off during use.
The reverse fast release variation works with the installing of 4985. 1717 along with other motors, can be easily running on 8S.
The convenient fast launch motor base is redeveloped by GPM to effortlessly stop the displacement associated with motor.
The motor opening is reserved for 3mm/4mm, which is often suitable for installing numerous forms of motors.
Aluminum 7075 broadcast Box,Designed to safeguard the air receiver from dust and water damage.
Suitable Model:
TRAXXAS-1/8 4WD SLEDGE MONSTER TRUCK-95076-4
