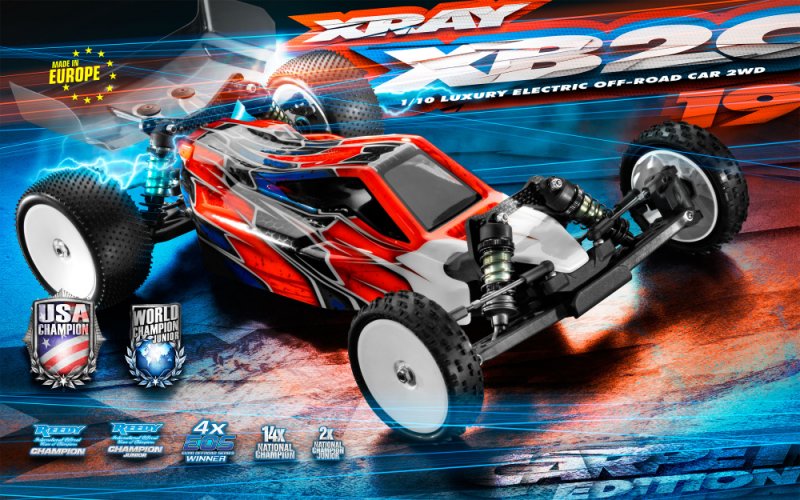

XRAY XB2C '19

1/10 LUXURY OFF-ROAD automobile 2WD



General

  • Brand new, from ground up 2WD 1/10 electric racing buggy
  • Uni-Platform concept: Carpet Edition and Dirt Edition
  • Full compatibility and interchangeable parts
  • Designed for highest performance anyway levels of racing
  • Engineered with focus on smallest details
  • Manufactured with famous creative craftsmanship from premium European materials
  • EFRA, ROAR, FEMCA spec compliant
  • Super easy to build, set up, maintain, and drive
  • Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, produced solely by XRAY in Europe in the world's many advanced RC manufacturing facility
  • Setting the newest standard for premium quality, dependability and performance
  • Premium XRAY service & help



Uni-Platform Concept

  • Uni-Platform concept two editions: Carpet Edition and Dirt Edition
  • Single platform, two editions for various traction conditions
  • Full compatibility and interchangeable components

 Carpet Edition:  created for medium to very-high traction conditions

    • Gear Differential
    • Mid-Motor Gear Box
    • Mid-Motor Plate
    • Graphite Front & back Shock Towers
    • Rear Roll Center Holder
    • Motor Upper Brace
    • Battery Strap
    • Medium and tough Composite components
  • Dirt Edition:  created for very-low, low, medium, and medium-high traction conditions
    • Ball Differential
    • Mid Gear Box for 3 Gears
    • Mid & Rear engine Plate
    • Composite Front & Rear Shock Towers
    • Rear Roll Center Holder
    • Motor Upper Brace
    • Battery Strap
    • Gear cover
    • Medium Composite parts



Chassis

  • Optimal chassis fat circulation & balance, particular to Carpet Edition or Dirt Edition
  • Carpet Edition Gear Box and engine Plate specifically made to mount the engine in middle place with top shaft placed lower
  • Dirt Edition Gear Box and engine Plate specifically designed to install the engine in either center place or back position, with top shaft positioned higher. Gear box could be designed with either a 3- or 4-gear setup, permitting adjustment associated with motor orientation from left to right part in either mid or rear positions.
  • Unique XRAY Multi-Flex technology for effortless chassis flex adjustment
  • Swiss 7075 T6 hardcoated aluminum framework: lightweight, strong, rigid
  • Electronics layout allows for moving the batteries frontwards/rearwards, also using standard or mid-size servos and either using saddle pack or quick pack batteries
  • Composite part guards are a fundamental piece of the XB2 Multi-Flex system
  • Custom-designed front lower chassis brace, obtainable in moderate and difficult hardness for specific track conditions
  • Front protection bumper
  • Custom-designed upper deck, available in medium and difficult hardness for certain track conditions
  • Swiss 7075 T6 aluminum engine plate, particular to Carpet Edition (mid-motor) or Dirt Edition (mid- or rear-motor)
  • Battery band with foam spacer, certain to Carpet Edition or Dirt Edition
  • Lightweight, strong surprise towers with numerous shock mounting roles, certain to Carpet Edition (graphite) or Dirt Edition (composite)
  • Pre-drilled chassis holes for additional loads for optimum car balancing; centerline holes are pre-drilled for effortless balancing using the HUDY Chassis Balancing Tool #107880



Drivetrain & Differentials:

  • Conventional gear-driven 2WD off-road car
  • Unique gear box, certain to Carpet Edition or Dirt Edition
    • Carpet Edition Gear Box and engine Plate with lowered top shaft, forward-shifted motor for improved steering and handling on higher-traction surfaces
    • Dirt Edition Gear Box with raised top shaft, engine positioning nearer to differential for improved rear hold in lower-traction conditions
  • Included back differential is specific to Carpet Edition (gear differential with adjustable oil viscosity, 53T gear & interior satellite gears) or Dirt Edition (externally-adjustable ball differential with high-quality carbide thrustbearing and carbide balls)
  • 25T graphite composite idler gear is specific to Dirt Edition & 36T gear to Carpet Edition
  • 20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
  • Robust slip-adjustable clutch with 81T main spur gear molded from exclusive secret mixture of composite material
  • 3-pad slipper clutch with ultra-efficient SLS product to get more efficient & precise slip adjustment, and HUDY Spring Steel™ hardened outdrives for additional lifespan and reliability
  • Constant velocity drives (CVD) are manufactured from unique HUDY Spring Steel for reduced weight and increased durability
  • Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 not to mention black-coated have actually ultra-true hex clamping design which ensures solid mounting associated with the wheel
  • Full set of 24 high-speed, blue-sealed ball-bearings are utilized throughout the drivetrain to ensure maximum effectiveness, degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and endurance



Suspension

  • Integrated Suspension Settings (I.S.S.) for fast & easy suspension system geometry setting making use of eccentric bushings inserted into Swiss 7075 T6 aluminum suspension system holders
  • Specially-designed suspension components constructed from very carefully formulated customized composite mixtures to ensure appropriate flex and durability
  • Race-perfected suspension system geometry for superior performance and flexibility in every race conditions.
  • Suspension components: hands, steering obstructs, caster blocks and uprights can be purchased in moderate and difficult hardness for certain track conditions
  • Lower composite supply mount with integrated 26° kick-up angle; optional aluminum and metal supply mounts available
  • Lightweight, rigid caster blocks can perform different overall caster angles using included caster bushings
  • Tiny yet tough steering obstructs composed of composite steering blocks + graphite Ackermann extensions
  • Adjustable weight stability & wheelbase via included shims on exterior suspension pins
  • Compact rear uprights with 0° toe and 6 different top roll center positions
  • HUDY Spring Steel product for turnbuckles (featuring a tougher core) can be used for front & rear upright linkages, and steering system.
  • Optionally available back anti-roll bar set to stabilize a corner for the automobile; easily adjusted via linkages; laser-engraved markings for effortless recognition, available in different sizes for fine-tuning



Steering

  • Simple yet effective dual-arm steering system
  • Fully bearing-equipped with 8 high-speed ball-bearings for really precise steering
  • Easily-adjustable Ackermann by quickly changing the steering link mounting jobs regarding steering plate
  • Bump guide adjustment for more aggression
  • Ackermann adjustment via included shims or utilizing different graphite expansion dishes on steering blocks



Shocks

  • constant, dependable, membrane-free shocks with bleed-screw surprise limit design feature up-stop & downstop modification via shims (under shock collar, and under pistons, correspondingly)
  • Swiss 7075 T6 aluminum shock figures, lower nut & bleeder shock caps
  • Super-precise molded Delrin™ pistons are offered with different holes & diameters for precise surprise modification; for custom modification, a couple of blank pistons (no holes) are also included
  • Shock rods are machined from a particular metal material, precision hand-ground for optimum smooth operation and additionally hardened for increased lifespan
  • Premium shock springs created particularly to complement the XB2 shocks; by hand calculated, selected and matched into pairs to make sure equal length and damping faculties; laser etched for simple identification
  • Full distinct linear -or- progressive shock springs available
  • Premium silicone oils laboratory tested and calibrated to ensure maximum persistence and quality


Body, Wings, Wheels:

  • High-downforce, low-profile aerodynamic Lexan™ body designed to completely fit the XB2, flat cockpit & human anatomy edges to direct airflow for improved part stability, and rooftop flow channels
  • Tough composite part guards function double-sided Velcro™ tape to seal the human body perfectly towards framework and seal against dirt.
  • Optional available ultra-lightweight body for very-high-traction songs conditions
  • Stylish, effective Lexan rear wing made to work perfectly because of the XRAY XB2 human body, supported on wing mounts by additional flat shims to higher help and expand the life of this wing. Recommended thicker 1.5mm (#323511) rear wing for greater traction & stability
  • Lexan front side wing yields front downforce, mounted entirely on the front shock tower
  • Specially designed 12mm hex hub tires for high-competition racing; featuring reinforcement ribs to eradicate deformation and molded from very flexible material to retain form even with impacts



Assembly, Set-up & help:

  • Premium 3D full-color instructions & supplementary sheets
  • To completely understand the set-up opportunities we suggest the legendary HUDY Set-up Book which will be loaded with over 40 pages of high-quality pictures and easy-to-read RC car set-up explanations
  • Exclusive Virtual on the web Setup Sheet database with 1000s of set-up sheets for battle tracks across the world
  • Premium, unmatched XRAY on the web support


Adjustment Possibilities:

  • Fully-adjustable front and rear suspension system geometry: caster, camber, back toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex
  • Adjustable rear differential action
  • Adjustable slipper clutch
  • Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear upper links)
  • Multiple upper & reduced surprise mounting locations at front & rear
  • Adjustable Ackermann and bumpsteer
  • Optional adjustable rear anti-roll bar
  • Chassis pre-drilled holes for weight stability adjustment



Dimensions

Class:

1/10 electric 2WD off-road automobile

Width:

Adjustable 245-250mm

Length:

274mm (394 with wing)

Wheelbase:

Adjustable  282-285mm

Body Weight:

835g

Ready-to-run fat:

1520g



Chassis

Chassis:

CNC-machined Swiss 7075 T6 aluminum 2.5mm (carpeting Edition) or 2.0mm (Dirt Edition)

Front upper deck:

Composite intense (carpeting Edition) or moderate (Dirt Edition)



Suspension

Suspension:

Adjustable suspension system via Integrated Suspension System I.S.S.

Back suspension:

Lower arm with adjustable top camber website link

Front suspension system:

Lower arm with adjustable top camber website link sufficient reason for adjustable caster 0°, 2.5° and 5°

Rear upright:

Composite 0° toe-in with twin supply mounting and 7 roll center jobs

Shocks:

Membrane free shock absorbers with Delrin pistons

Shock towers:

Front & rear machined 4.0mm & 3.5 mm laminated carbon graphite (Carpet Edition) or composite (Dirt Edition) with multiple surprise mounting



Drivetrain

Type:

2WD

Primary:

Pinion / spur

Drive shafts:

HUDY Spring Metal CVD drive shafts

Differential:

Sealed gear differential, 6 gear, silicone-filled

Slipper clutch:

Adjustable 3-Pad

Bearings:

Rubber-sealed high-speed bearings



Gearing

Primary ratio:

1:2.65

Gear Box gear:

36T (carpeting Edition) or 25T (Dirt Edition)

Differential pulley:

53T

Spur gear:

81T (75T, 78T, 84T & 87T choice)

Engine pinion:

Maybe not included



Geometry

Camber:

Adjustable front side + backside

Front Caster:

26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range

Toe-in:

Adjustable front + back

Downstops:

Adjustable front side + backside

Front kick-up:

Adjustable 26°~31°

Rear anti-squat:

Adjustable 0°~4°

Anti-roll bars:

1.0mm, 1.1mm, 1.2mm back (choice only)

Ackermann:

Adjustable

Bump steer:

Adjustable

Steering:

Centrally-positioned dual steering system



Body, Tires, Wheels & Misc

Body:

XRAY XB2 body

Tires:

Maybe not included

Tires:

XRAY Aerodisk 12mm Wheel hex hub



Adjustment Possibilities

Standard modification:

Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer

Guidelines:

Full-color manual with 3D images (40 pages)

Set-up guide:

Not included. HUDY 2-color off-road set-up book (40 pages) could be downloaded in €žDownload part therefore shows 1/8 off road models in photographs contained within it. But the methodology and set-up theory are exactly the same for several contemporary 1/10 off-road automobiles.

Packaging:

Carton package with plastic bags with parts

Also included

HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals



Products perhaps not Included

Radio system (transmitter and receiver), steering servo, motor, pinion gear, LiPo battery packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for many nuts and turnbuckles and other tools
