Dimensions
|

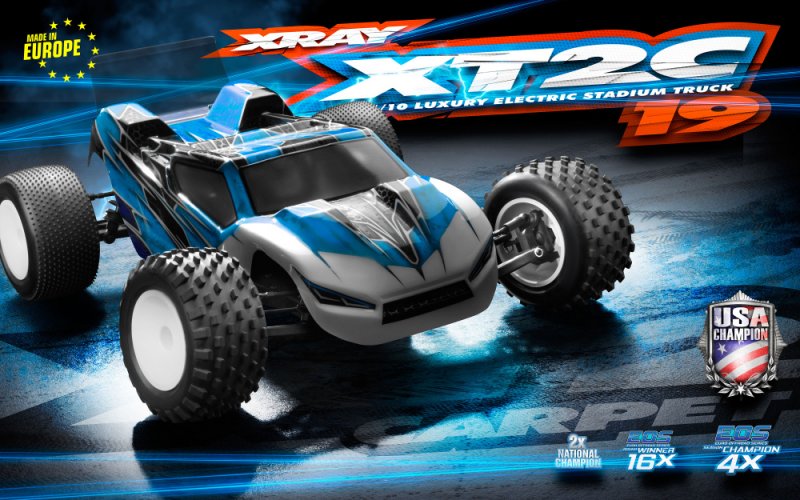

Course: | 1/10 electric 2WD off road stadium vehicle |
Width: | Adjustable 313-319mm |
Length: | 319mm (420 with wing) |
Wheelbase: | Adjustable 289-294mm |
Body Weight: | 920g |
Ready-to-run weight: | 1900g |
Chassis
|
Chassis: | CNC-machined Swiss 7075 T6 aluminum 2mm |
Front top deck: | Tough composite |
Suspension
|
Suspension: | Adjustable suspension system via Built-in Suspension System I.S.S. |
Back suspension system: | Lower arm with adjustable upper camber website link |
Front suspension system: | Lower supply with adjustable upper camber website link along with adjustable caster 0°, 2.5° and 5° |
Rear upright: | Composite 0° toe-in with double supply mounting and 7 roll center jobs |
Shocks: | Membrane free shock absorbers with Delrin pistons |
Shock towers: | Composite front side and rear shock towers include numerous surprise jobs (carpeting Edition) & Graphite rear shock tower (Dirt version) |
Drivetrain
|
Type: | 2WD |
Primary: | Pinion / spur |
Drive shafts: | HUDY Spring Steel⢠CVD drive shafts |
Differential: | Sealed gear differential, 6 gear, silicone-filled (Carpet Edition) Hard coated ball differential (Dirt version) |
Slipper clutch: | Adjustable 3-Pad |
Bearings: | Rubber-sealed high-speed bearings |
Gearing
|
Main ratio: | 1:2.65 |
Gear Box gear: | 36T (Carpeting Edition) & 25T (Dirt Edition) |
Differential pulley: | 53T |
Spur gear: | 81T (75T, 78T, 84T & 87T choice) |
Engine pinion: | Perhaps not included |
Geometry
|
Camber: | Adjustable front + back |
Front Caster: | 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range |
Toe-in: | Adjustable front + back |
Downstops: | Adjustable front side + back |
Front kick-up: | Adjustable 26°~31° |
Rear anti-squat: | Adjustable 0°~4° |
Anti-roll pubs: | Front â 1.4mm (1.2mm, 1.6mm & 1.8mm choice just) Back - 1.0mm to 2.0mm (choice only) |
Ackermann: | Adjustable |
Bump steer: | Adjustable |
Steering: | Centrally-positioned dual steering system |
Body, Tires, Wheels & Misc
|
Body: | XRAY XT2 human anatomy |
Tires: | Maybe not included |
Wheels: | Not included - XRAY Aerodisk 12mm Wheel hex hub (option only) |
Adjustment Opportunities
|
Standard modification: | Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer |
Directions: | Full-color manual with 3D pictures (40 pages) |
Set-up guide: | Not included. HUDY 2-color off road set-up guide (40 pages) could be downloaded into the down load area also it shows 1/8 off-road models in photographs included within it. However, the methodology and set-up concept are exactly the same for several contemporary 1/10 off-road cars. |
Packaging: | Carton box with vinyl bags with parts |
Also included | HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals |
Things Not Included
|
Radio system (transmitter and receiver), steering servo, motor, pinion gear, LiPo battery pack packs, speed controller, charger, tires, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for several nuts and turnbuckles along with other tools |
