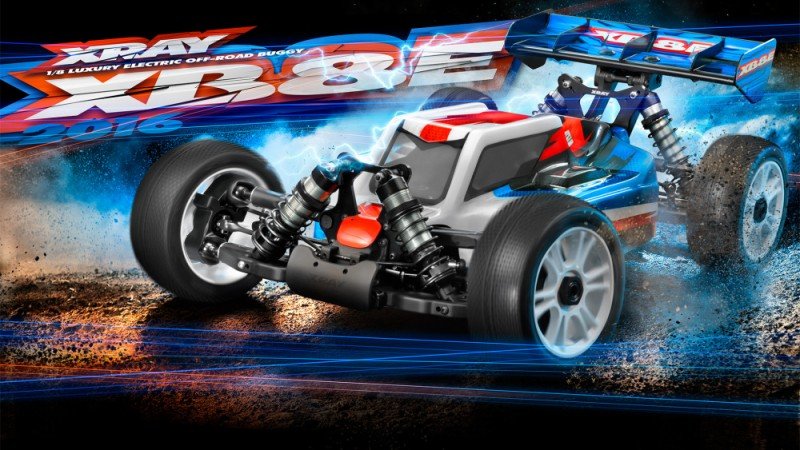

XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car  [XR-350153]

Dimensions

• Length: 500mm
• Chassis length: 399.5mm
• Wheelbase: 322~328mm
• Width: 310mm
• Weight: 2014g
• Approximate running weight: 3450g

Chassis

• Chassis: 3mm CNC-machined Swiss 7075 T6 hardcoated aluminum
• Receiver tray: CNC-machined 2.2mm graphite
• Radio instance: Composite
• Front upper deck: CNC-machined 2.5mm graphite
• Central diff top deck: CNC-machined 2.2mm graphite
• Braces: Composite braces (front side / rear)

Suspension

• Suspension: Pivot ball fully adjustable suspension
• Rear suspension system: Lower H-arm with adjustable upper camber link
• Front suspension: Lower H-arm with adjustable upper camber link A-arm
• Rear upright: Composite with double arm mounting and 2 reduced roll center positions and upper aluminum dish with 3 upper roll center positions
• Shocks: Big-bore shocks with various surprise pistons featuring Delrin™ pistons
• Shock towers: Front & rear 4.0mm alu

Drivetrain

• Type: Full-time shaft-drive 4WD w/ center differential
• Primary: Steel spur gear / pinion
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Central shafts: HUDY Spring Steel™ CVD drive shafts
• Differentials: Sealed, 6 gear, silicone-filled
• Bearings: Rubber-sealed

Gearing

• Pinion: 14T front side / rear
• Crown gear: 46T front / rear
• Pinion gear: Not included (optional 12T~17T)
• Spur gear: 46T
• Primary ratio: 3.33
• Final gear ratio: 11.79

Body, tires, wheels & misc.

• Body: XRAY XB8'16 body
• Tires: maybe not included
• Wheels: perhaps not included, standard 17mm hub

Adjustment possibilities:

• Standard adjustment: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, reduced & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex™, weight balance

Products maybe not included:

•   Electric Motor, Electronics (broadcast, Receiver, Steering Servo, Battery Pack, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel device, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal device for all nuts and turnbuckles, Set-up Book
