XRAY 350202 XT9 - 1/8 Luxury Racing Truggy  [XR-350202]

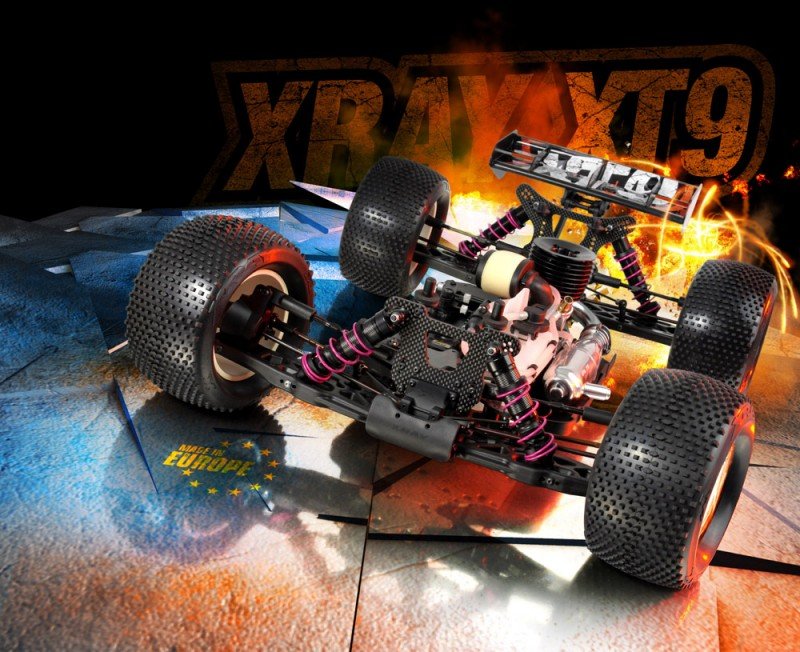

XRAY 350202 XT9 - 1/8 Luxury Racing Truggy
Price:
USD$639.40
Brand:
XRAY
Model:
XR-350202
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Truggy - Nitro Powered category
Write a review
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"
alt="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy" title="XRAY 350202 XT9 - 1/8 Luxury Racing Truggy"

Dimensions

  • Class: 1/8 nitro truggy
  • Length w/o human body: 574 mm
  • Chassis size: 452 mm
  • Wheelbase: 376-388 mm
  • Width: 428 mm front side; 430 mm back
  • Weight: 2333 gr
  • Ready-to-run weight: approx. 3681g


Chassis

  • Chassis: CNC-machined 3.0 mm Swiss 7075 T6 aluminum
  • Shock towers: machined laminated carbon graphite (front + rear) with numerous surprise mounting and roll center positions
  • Radio tray: composite one piece


Drivetrain

  • Type: Full-time shaft-drive 4WD w/ center differential
  • Drive shafts: CVD drive shafts – Hudy Spring Steel™
  • Final drive ratio (FDR): 15.88:1
  • Differentials: Sealed, 6 gear, silicone-filled
  • Front differential: 43T
  • Center differential: 48T
  • Rear differential: 43T
  • Clutch bell: 13T
  • Clutch: Aluminum 3-shoe


Suspension

  • Suspension: Adjustable suspension with preset geometry
  • Rear suspension: Lower H-arm with adjustable upper camber link
  • Front suspension system: Zero Kingpin suspension with built-in adjustable caster
  • Rear upright: Composite with twin arm mounting and 3 roll center jobs
  • Shocks: Big-bore, long-travel shocks, machined aluminum, oil-filled, coil-over shocks


Adjustability

  • Caster: adjustable front side + rear
  • Camber: adjustable front + rear
  • Toe: adjustable front + rear
  • Kick-Up: adjustable front side
  • Anti-squat: adjustable rear
  • Ride height: adjustable front + rear
  • Downstops: adjustable front + rear
  • Track-width: adjustable front + rear
  • Front anti-roll bars: Wire style 2.4 mm
  • Rear anti-roll club: Wire design 2.8 mm
  • Roll center: adjustable front + rear, upper & lower
  • Bump steer: adjustable front side
  • Wheelbase: adjustable front side & back
  • Ackermann: adjustable front
  • Shocks: Adjustable damping, preload, mounting jobs


Equipment

  • Body: XRAY XT8 human body
  • Wheels: XRAY Racing Dish Wheels
  • Tires: XRAY Thrax low-profile tires with foam inserts
  • Fuel tank: 150cc capability with hypertonic tank lid and internal stone-type filter and fuel tank pressure cap with 1-piece profiled seal
  • Instructions: guide with 3D photos (44 pages)
  • packing: carton box with vinyl bags with parts
  • Additionally included: Authentication Certificate, set-up sheet, components list & exploded view, decals
  • Not included: radio system (transmitter and receiver), individual transponder, steering & throttle servos, motor, manifold & exhaust, beginner field & beginner field battery pack, receiver battery power, glowplug igniter, battery pack charger, Lexan® paint, model R/C car gas (nitromethane), tape, CA glue, bearing oil, medium-grade (blue) threadlock, tools, Set-up book: 2-color Set-Up Book (39 pages) - maybe not included
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
