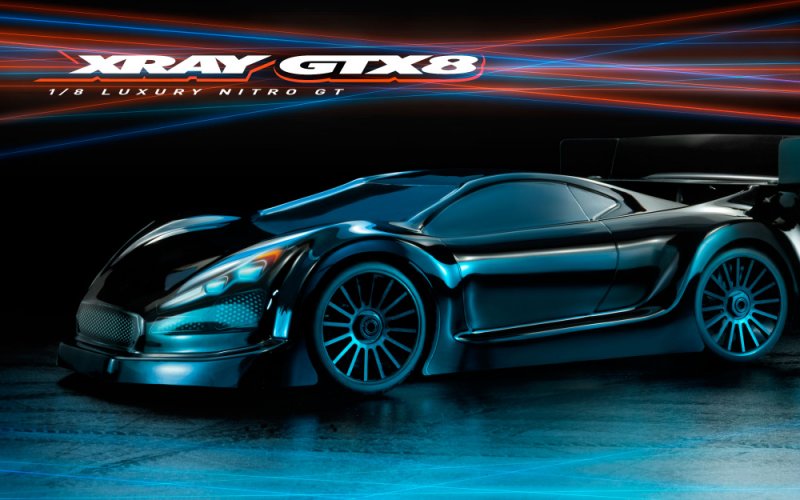

XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car  [XR-350501]

XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car
Price:
USD$824.20
Brand:
XRAY
Model:
XR-350501
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category
Write a review
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"
alt="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car" title="XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car"

XRAY GTX8



Chassis

  • CNC-machined framework made from 3mm top-notch Swiss 7075 T6 aluminum
  • Strategically machined for ultra-light fat and uncompromised energy & rigidity
  • Pre-drilled centerline holes to be used with HUDY Chassis Balancing Tool
  • 1-piece, compact, easy-to-remove electronic devices assembly
  • Front & rear framework braces for adjusting framework tightness & flex
  • Large, easy-access, molded radio box
  • Super-strong diff bulkheads household the differentials and offer mounting points for suspension mounts and surprise towers
  • Extra-thick, premium-grade graphite shock towers include multiple shock mounting positions
  • Connecting link between throttle servo and radio box, for reduction of vibrations to chassis and more precise throttle & brake control.
  • Compact front side foam bumper created from high-resilience, lightweight foam
  • Front upper bumper owner & reduced composite bumper are molded from rigid composite to withstand difficult crashes



Engine & Clutch

  • High-torque clutch for smooth and continuous energy transfer at high RPM
  • Swiss 7075 T6 tiny, lightweight clutch shoes permit smoother engagement at high RPM
  • Extra-tough Hudy Spring Steel™ flywheel nut
  • Optionally-available softer & harder clutch springs
  • High-grade, CNC-machined aluminum motor mounts
  • Extra-large ability 150mm fuel tank produced from unique composite mixture features a floating stone filter and internal baffles to ensure constant gas supply
  • Fuel tank mounting with rubber grommets to absorb vibration



Brakes

  • Well-proven, high-performance braking system for strong, exact and dependable stopping performance.
  • Laser-cut, accuracy flat-ground metal braking system disk permits fade-free braking
  • Special high-grip braking system pads set up on laser-cut metal backing plates
  • Rigid, high-precision machined brake cam posts



Drivetrain

  • Conventional shaft-driven 4WD drivetrain
  • Front & rear gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
  • Central 2-speed gearbox
  • front side, back, and main CVD drive shafts produced from HUDY Spring Steel™
  • Central bigger & more powerful outdrives function protective plastic boots, thick 3mm pins, and a protective locking ring
  • Rubber-sealed composite differential housings with metal inserts.
  • Pressed steel interior diff gears, temperature addressed & machined for ultra-high precision and smooth operation
  • Diff gears made from unique HUDY Gear Steel
  • Super-lightweight, hardened diff outdrives made from HUDY Spring Steel™
  • Ultra-lightweight 17mm wheel hex drive hubs re CNC-machined from Swiss 7075 T6 black-coated aluminum
  • Full group of 27 high-speed, lightly-oiled, blue-sealed ball-bearings make sure maximum efficiency
  • 2-speed transmission mounted on a precision-manufactured, super-smooth layshaft made from tough HUDY shaft steel for 2-speed, which will be furthermore heat addressed for additional power and longevity.
  • 2-speed gear adapter produced from hardened steel
  • 2-speed gear adapter CNC-machined from Swiss 7075 T6 with 1-way bearing for super-precise and wobble-free spur gear mounting



Suspension

  • Ultra-robust XRAY Pivot Ball Suspension XPBS™ with built-in suspension system geometry adjustment
  • Integrated Suspension Settings™ (I.S.S.) for fast & effortless suspension system geometry setting
  • Suspension hands with optimal size, depth, freedom, geometry of suspension points, and material faculties.
  • Super-lightweight composite steering blocks + rigid Swiss 7075 T6 kingpin plate
  • Easily-settable kingpin dish offers either 0° or 7° angle
  • Optional kingpin dishes available
  • Ultra-tiny composite back uprights + stiff Swiss 7075 T6 mounting plate
  • Extra-strong & robust front top arms
  • Exclusive composite mixtures developed in-house by XRAY provide perfect balance between reliability and performance
  • Turnbuckles created from special mixture of HUDY Spring Steel™ especially formulated for turnbuckles
  • Front & backside anti-roll pubs made of spring steel product



Steering

  • Dual-arm steering system with adjustable Ackermann
  • Swiss 7075 T6 aluminum steering plate
  • Quick & easy Ackermann and bump steer adjustment



Shocks

  • Big-bore shocks for ultimate reliability and performance
  • 18.5mm outer-diameter hardcoated shock bodies
  • Shock body external threading allows fast & effortless spring preload adjustment
  • Ultra-precise big-bore 6-, 8- and 10-hole surprise pistons created from Delrin™ material for smooth procedure and durability
  • Shock springs are manually measured, selected and matched into pairs to guarantee exactly equal size and damping characteristics
  • HUDY Exclusive Silicone natural oils are manufactured in European countries, and each batch of is laboratory tested and calibrated to ensure the highest possible persistence and quality batch-to-batch. In line with the industry-standard cSt score, the oils is supposed to be very easy to determine, adjust, and feel.



Body & Wing

  • XRAY self-designed GTX human body (optional) produced from top-quality Lexan™ product features high-downforce areas for appropriate airflow and improved stability
  • Molded wing struts (3) for added durability and superior mounting
  • High-strength wing
  • Composite side guards protect the car, muffler, and gas tank from part effects. Along side it guards perfectly fit the chassis and seal against dirt.
  • Optional graphite part guard braces permit really efficient and simple chassis flex modification to regulate the control for the car to various track conditions.



Assembly & Support

  • Premium 3D full-color Instruction Manual
  • Premium, unmatched XRAY online support



Adjustment Possibilities:

The GTX features fully-adjustable front side and back suspension system geometry. For quick & effortless adjustment, we suggest using set-up tools and accessories from HUDY, the entire world leader of RC tools.

The considerable and impressive array of adjustment possibilities includes:

  • Caster
  • Camber
  • Toe
  • Kick-up
  • Anti-dive
  • Anti-squat
  • Ride height
  • Downstops
  • Track-width
  • Roll centers
  • Bump steer
  • Wheelbase
  • Ackermann
  • Adjustable shocks
  • Adjustable front & rear diffs


All requirements are at the mercy of alter without prior notice. Pre-production model is shown, final requirements may slightly differ. In certain photos optional components could be shown. All option parts are not included and must certanly be bought separately. Along with of some aluminum components can vary greatly from kit to kit and some associated with the kits may not add most of the orange or black components as shown. A few of the free parts or choice components may possibly not be available at the moment in the orange or black colored color as shown. The racing body is available only as an option and it is perhaps not included in the package.



Dimensions

Length:

510mm

Chassis size:

400mm

Wheelbase:

318~326mm

Width:

300mm

Weight:

2155g

Approximate operating fat:

3320g

Framework

Chassis:

3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum

Broadcast tray:

Composite 1-piece

Central 2-speed deck:

Composite

Braces:

Composite braces (front side / backside)

Suspension

Suspension:

XPBS™ fully adjustable suspension system

Rear suspension:

Lower H-arm with adjustable upper camber link an arms

Front suspension:

Zero Kingpin suspension ball suspension , 0-7° kingpin plate

Back upright:

Composite with dual supply mounting and 2 reduced roll center positions and top aluminum plate with 4 upper roll center jobs and adjustable roll center height with adjustable shims

Shocks:

Big-bore shocks with different surprise pistons featuring Delrin pistons

Shock towers:

Front 3.5mm graphite, rear 3.5mm graphite

Drivetrain

Type:

Full-time shaft-drive 4WD with center 2-speed

Primary:

Steel spur gear / clutchbell

Drive shafts:

HUDY Spring Steel™ CVD drive shafts

Central shafts:

HUDY Spring Steel™ CVD drive shafts

Differentials:

Sealed, 6 gear, silicone-filled

Clutch:

Aluminum 3-shoe

Bearings:

Rubber-sealed

Gearing

Pinion:

14T front / back

Crown gear:

46T front side / rear

Pinion gear:

Hardcoated aluminum 1st: 16T; 2nd: 19T

Spur gear:

Composite 1st: 49T; 2nd: 46T

Body, Tires, Wheels & Misc

Body:

Optional #359730 GT Body not included

Tires:

Not included

Tires:

Maybe not included

Gas tank:

150cc capability with capacity-adjustment portions, with hypertonic tank lid and interior stone-type drifting filter

Adjustment Opportunities

Standard Adjustment:

Camber, caster, toe-in, wheelbase,  kick-up, anti-squat, reduced & upper roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, fat balance

Products Not Included



Engine, Exhaust system, Electronics (broadcast, Receiver, Servos, Batteries), Wheels, Tires, Tools, Wheel device, Receiver battery, Fuel, Switch, begin field, Glow heater, Paint, Charger, Universal device for all nuts and turnbuckles, Set-up book.

Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
