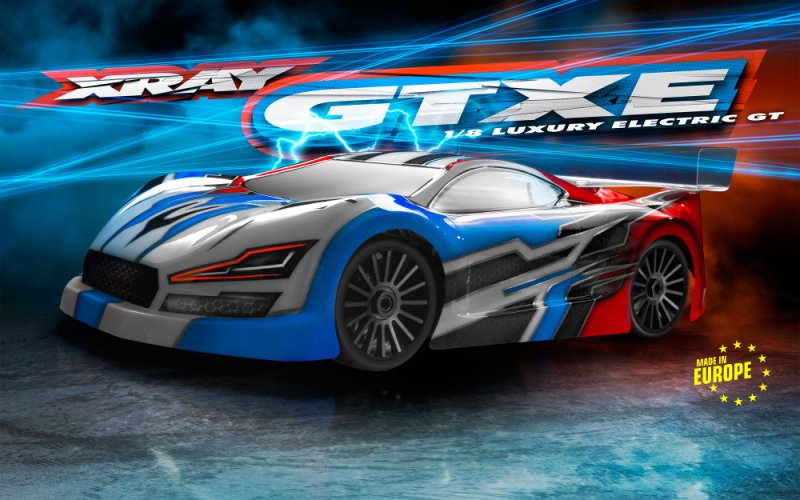

XRAY 350600 GTXE  [XR-350600]

XRAY 350600 GTXE
Price:
USD$721.60
Brand:
XRAY
Model:
XR-350600
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"
alt="XRAY 350600 GTXE" title="XRAY 350600 GTXE"

Dimensions

  • Length: 510 mm
  • Chassis size: 400 mm
  • Wheelbase: 318 ~ 326 mm
  • Width: 300 mm
  • Weight: 2155 g
  • Approximate operating weight: 3320 g


Chassis

  • Chassis: 3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum
  • Radio tray: CNC-machined 2.2 mm graphite
  • Radio situation: Composite
  • Front top deck: CNC-machined 2.5 mm graphite
  • Central diff upper deck: CNC-machined 2.5 mm graphite
  • Braces: Composite braces (front side / back)


Suspension

  • Suspension: XPBS™ completely adjustable suspension
  • Rear suspension: Lower H-arm with adjustable top camber link A arms
  • Front suspension: Zero kingpin suspension ball suspension system, 0-7° kingpin plate
  • Rear upright: Composite with dual arm mounting and 2 reduced roll center roles and top aluminum plate with 4 top roll center roles and adjustable roll center height with adjustable shims
  • Shocks: Big-bore shocks with various shock pistons featuring Delrin™ pistons
  • Shock towers: Front 3.5mm graphite, back 3.5mm graphite


Drivetrain

  • Type: Full-time shaft-drive 4WD
  • Primary: metal spur gear / pinion
  • Drive shafts: HUDY Spring metal™ CVD drive shafts
  • Central shafts: HUDY Spring metal™ CVD drive shafts
  • Differentials: Sealed, 6 gear, silicone-filled
  • Bearings: Rubber-sealed


Gearing

  • Pinion: 14T front side / rear
  • Crown gear: 46T front / rear
  • Pinion gear: Hardcoated aluminum 19T-24T
  • Spur gear: Composite 48T, 49T, 50T


Body, Tires, Wheels & Misc

  • Body: Optional #359730 GT Body maybe not included
  • Tires: perhaps not included
  • Wheels Not included


Adjustment possibilities

  • Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, lower & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, weight stability


Products Not Included

  • Electronics (Radio, Receiver, Servo, Batteries, Speedo), Wheels, Tires, Tools, Wheel tool, , , Paint, Charger, Universal device for many peanuts and turnbuckles, Set-up guide
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
