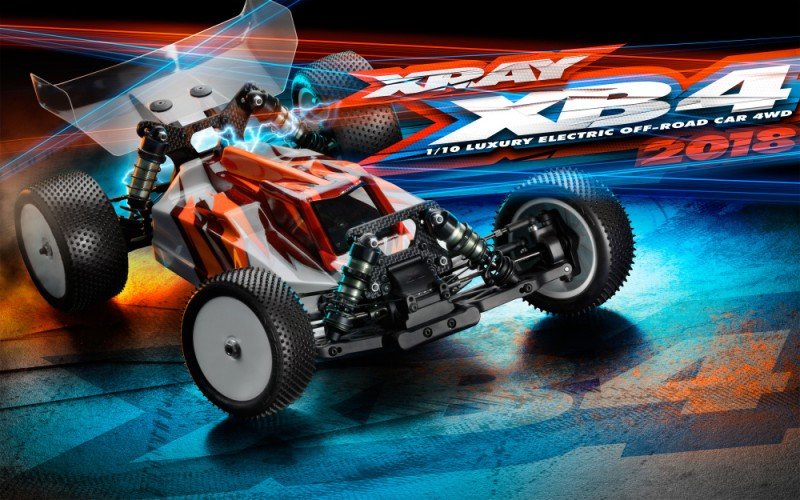

XRAY 360005 XB4 2018 Specs  [XR-360005]

Dimensions

• Class: 1/10 electric 4WD off-road car
• Width: Adjustable 245-250mm
• Length: 350 mm
• Wheelbase: Adjustable 279-281 mm
• Weight: 850 g
• Ready-to-run fat: 1650 g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
• Front top deck: Machined 2.0 mm laminated carbon graphite

Suspension

• Suspension: Adjustable suspension via incorporated Suspension System I.S.S.
• Rear suspension system: Lower arm with adjustable upper camber link
• Front suspension system: Lower arm with adjustable upper camber link and with 9° caster blocks
• Rear upright: Composite 0° toe-in with double arm mounting and 3 roll center positions
• Shocks: Big bore membrane layer free surprise absorbers with Delrin pistons
• Shock towers: Machined 3.5 & 3.0 mm laminated carbon graphite (front & back) with numerous surprise mounting and camber website link roll center positions

Drivetrain

• Type: Full-time shaft-drive 4WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring Steel™ CVD drive shafts
• Central shafts: HUDY Spring metal™ Direct Connection Shafts™
• Differentials: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.5
• Differential pinion: 14T front / rear
• Differential top gear: 35T front / rear14
• Spur gear: 81T
• Motor pinion: perhaps not included

Geometry

• Camber: Adjustable front + rear
• Front Caster: 9° fixed +7~11° caster in framework = 16°~20° total caster range Optional 6° static +7~11° caster in chassis = 13°~17° total caster range Optional12°static +7~11° caster in framework = 19°~23° total caster range
• Toe-in: Adjustable front side + rear
• Downstops: Adjustable front side + back
• Front kick-up: Adjustable 7° ~ 11°
• Rear anti-squat: Adjustable 1° ~ 5°
• Anti-roll pubs: 1.3mm front side / 1.2mm rear
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned twin steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB4 human anatomy wide V2
• Tires: maybe not included
• Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• guidelines: Full-color manual with 3D photos (40 pages)
• Set-up book: maybe not included. HUDY 2-color off road set-up book (40 pages) is downloaded in “Download section“ also it shows 1/8 off road models in photographs included within it. However, the methodology and set-up theory are the same for several modern 1/10 off-road vehicles.
• Packaging: Carton package with plastic bags with parts
• Additionally included HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals

Products perhaps not Included

•   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for all peanuts and turnbuckles and other tools
