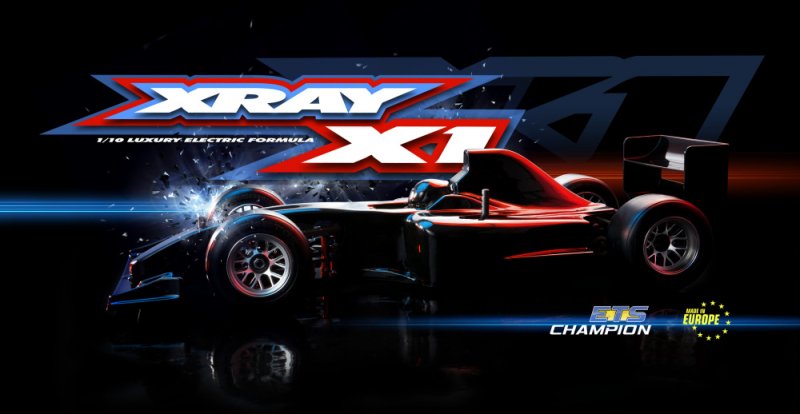

XRAY 370700 X1  [XR-370700]

XRAY X1

1/10 DELUXE ELECTRIC FORMULA

2018 All-new:

• All-new super-narrow framework design is 24mm narrower to get rid of framework connection with the track while rolling
• All-new redesigned side link adaptors – machined from graphite – are mounted to aluminum stands to do business with brand new super-narrow chassis
• All-new steering blocks with new additional Ackermann position for more in-corner steering and almost 100percent Ackermann curve
• All-new surprise adaptor for quick & effortless shock place changes; new frontward position for improved drivability over bumps and improved on-power traction
• All-new graphite servo holder enables mounting of new surprise adaptor
• All-new tweak-free pivot brace for faster & easier pod dish mounting
• All-new back link brace with longer leads for battery part stop permits 5mm modification of battery position
• All-new battery pack backstop mounting allows battery place adjustment
• Current most useful doing 1/10 formula car: 2x European Champion, 3x ETS Champion, Snowbird Champion, IIC Champion, and a large number of National championship titles
• Platform (including virtually all parts) works with with past X1 versions
• 2018 version dedicated to fine enhancement of tiny details, making the car an absolute winner straight out of the package

General:

• XRAY 1/10 Formula battle vehicle with authentic 100per cent self-developed XRAY parts, designed and manufactured components by XRAY in Europe
• Legendary XRAY premium design, workmanship & product quality and unmatched attention to the best details
• Simple yet effective and proven design, well thought-out details, unmatched accuracy in all details
• High-competition design with focus on ultra-low weight, resulting in super-lightweight construction
• Optimized for interior carpeting race as well as outdoor asphalt racing
• Elegant in ease of use & effectiveness, the X1 is scheduled to become the new standard in 1/10 Formula racing

Chassis:

• CNC-machined from custom-manufactured 2.5mm high-grade graphite product with a specially-designed element for carpet race and asphalt racing
• Super-narrow chassis front permits optimum traction while keeping sufficient steering and cornering speed
• Chassis design has optimal stiffness for exceptional managing, flexibility for optimum traction, and ideal torsional stability
• Superb managing on either indoor or outside tracks, on carpet or asphalt

• Improved steering response and optimal side-to-side fat transition
• Rear graphite brace holds battery set up, and offers a solid mounting base the optional part shock
• Battery placement is quickly changed from inline to cross-chassis, to supply ideal fat balance dependent on track conditions; composite battery backstops eliminate battery pack movement
• Cross-chassis battery pack positioning has adjustable place around 5mm aswell as a result of the adjustable battery backstop in chassis
• Laydown steering servo orientation for lowest CG at chassis center
• Front center shock mount lies within the absolute chassis center for perfect side-to-side fat transfer
• Chassis and back pod feature pre-drilled centerline holes for maximum fat stability adjustment using HUDY Balancing Tool #107880

Front suspension:

• Strong, easy, fully adjustable, yet smart and ultra-efficient front side suspension
• High-grade graphite reduced & top suspension system hands and arm mount plate
• Tiny, strong composite pivot balls for smooth, bind-free operation
• Adjustable front side caster via eccentric bushings for front top dish: 3°, 6°, 9°, and 12°
• Adjustable front side camber via eccentric bushings for front upper hands: 1.0°, 1.5°, 2.0°, and 2.5°
• Front adjustable anti-roll club with optional complete selection of wires for fine tuning
• Adjustable front upper & lower roll facilities via included shims
• Adjustable front track-width adjustment via included wheel axle shims

Steering:

• Independent floating servo mounting system: range of independent or fixed position
• Tiny, robust 4-spring servo saver protects the servo from effect harm. Provides precise steering and consistent control, while making the car better to drive
• Pre-drilled chassis holes to allow for either a micro or mid-size steering servo
• Centralized servo place for perfect steering characteristics
• Centrally-positioned servo saver arm with selectable Ackermann positions
• Servo supply mounting: range of independent floating or standard mounting
• Adjustable bumpsteer traits via included shims
• Steering backstops installed on reduced arms enable modification of optimum steering angle
• Super-tiny yet robust steering blocks with extra new Ackermann jobs to get more steering, and ultra-precise internal gap for kingpin ensures wobble-free assembly
• Super-smooth hardened steel kingpins
• Adjustable, lightweight aluminum turnbuckles for front toe adjustment

Back pod:

• Compact, ultra-lightweight rear pod design with composite rear pod links situated nearer to chassis centerline
• Narrow back pod design provides enhanced steering reaction and optimal side-to-side weight transition
• CNC-machined pod bulkheads produced from premium extra-hard Swiss 7075 T6 aluminum, additionally black coated for very long life and fashionable look
• Rear pod top plate created from strong graphite plate may be the base the main shock, the working platform for the part tubes, also it connects the front framework installation because of the back pod
• Rear wing graphite mount features multiple wing height mounting positions even for better adaptation to different traction conditions
• Smart pod design accommodates all engines, permits super-easy motor access
• Pod pivot brace features an ultra-small and lightweight pivot ball for smooth movement
• Eccentric composite bushings are included for ultra-fine back trip height adjustment
• Lateral damper side tubes for smoother, more consistent operation
• Linear part springs for consistent and smooth compression for smooth out-of part leaving, and reduced amount of traction rolling

Shock:

• Well-proven short surprise from T4 touring vehicle platform.
• Interchangeable interior components, with fixed 1-piece precision pistons which are available with 3 different-diameter holes for damping adjustment: 1.1, 1.2, and 1.3mm with 3 and 4 holes
• CNC-machined Swiss 7075 T6 aluminum surprise human body, hard-anodized, with fine external threading for quick & effortless surprise springtime preload adjustment
• Super-soft silicone shock O-ring for smooth procedure while preventing oil leakage
• Ultra-finely finished hardened shock shaft
• Self-centering shims hold the surprise O-rings, for perfect positioning in the surprise body
• Finely-threaded aluminum shock lower limit secures the silicone O-rings and shims in surprise body
• Super-soft silicone membrane, supported by a miniature foam pad, provides appropriate damping characteristics
• Aluminum surprise springtime collar enables quick & effortless downstop adjustment
• The C=2.3 linear 3S shock spring supplies the best balance between traction, stability, and steering reaction; an entire array of optional springs can be obtained for further fine adjustment
• Complete array of springs including progressive 3S springs (optional)
• Aluminum modern shocks system for improved traction & steering (optional)
• New adaptor allows long surprise mounting for improved traction and better driving over bumps

Drivetrain:

• CNC-machined ultra-precise wheel axles created from premium HUDY Spring Steel™ are also hardened and hand-ground for precision fitment
• Ultra-strong lightweight hollow metal axle for optimum dependability and paid off rotational weight
• Rear differential with high-grade precision carbide balls for spur gear, hardened & precision-ground D-shaped metal shims, and premium carbide axial thrust-bearing
• Precision-molded spur gear made from XRAY's exclusive composite product, guarantees real operating, super-quiet operation, and robustness to be used with effective motors
• CNC-machined rear hubs created from lightweight aircraft aluminum, particularly lightened and black-coated for stylish looks
• Rear left aluminum wheel hub features a center-balanced clamping mounting system, ensuring safe mounting while eliminating vibration and run-out
• Full set high-speed, blue-sealed, metal ball-bearings utilized through the drivetrain and steering to make sure maximum efficiency. All bearings are degreased and oiled with AeroShell® Fluid 12 for optimum smoothness and long life
• Easy back track-width modification via included shims

Body & Aerodynamics:

• Robust human anatomy articles mounted on the solid platform on aluminum really stands, featuring fully-adjustable human anatomy holders
• Multi-part front spoiler consists of composite bumper and Lexan™ downforce spoiler
• Composite front framework bumper is very rigid yet versatile to supply superior protection
• Lightweight Lexan™ front spoilers – range of low or high downforce spoilers for difference track conditions
• High-efficiency, high-strength, adjustable-downforce back wing with adjustable mounting height position
• High-performance, low-profile aerodynamic X1 human body created from top-quality premium Lexan™ product for maximum flexibility in most track conditions. Back air networks direct airflow onto back wing. Body sides as well as cockpit sides are since flat as you possibly can to direct airflow across the human anatomy for optimum security. On rooftop, two flow channels are included for appropriate ventilation. An integral helmet ensures your body is legal for events in which a pilot figure helmet is necessary.

Installation & support:

• Highest quality of all of the composite components guarantees super-precise fitment, effortless installation, and smooth procedure of all of the parts
• Premium 3D full-color Instruction Manual
• Exclusive Virtual on line Set-up Sheet database with numerous of set-up sheets for battle songs round the world
• Premium, unmatched XRAY online help

Modification possibilities:

• Front camber, caster, and toe
• Front & rear track-width
• Front, center, and rear ride height
• Front springs
• Front anti-roll bar
• Fully-adjustable back shock absorber
• Downstops
• Side damper pipes for lateral pod damping
• Chassis tweak
• Ackermann
• Bump steer
• Differential settings
• Battery position
• Front wing downforce
• Rear wing downforce
• Steering system
• Servo mount system
