XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck  [XR-380500]

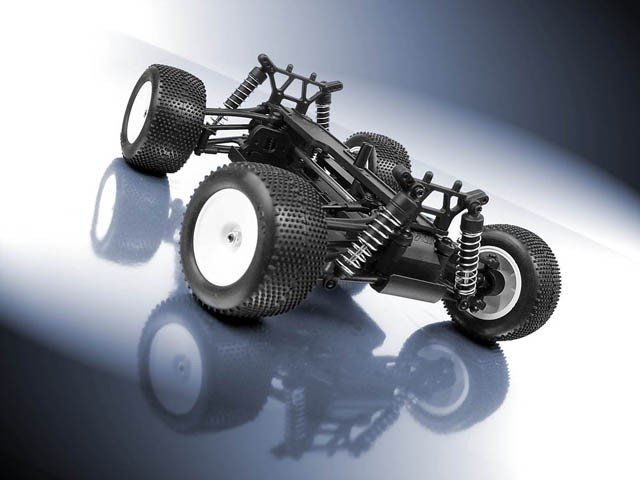

XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck
Price:
USD$136.10
Brand:
XRAY
Model:
XR-380500
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Trucks category
Write a review
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"

Dimensions

  • Class: 1/18 electric micro truck
  • Front Width: 178mm
  • Rear Width: 180mm
  • Length: 211 mm
  • Wheelbase: 150 mm
  • Weight: 295 g
  • Ready to operate fat: 535 g


Chassis:

  • Chassis: composite CAD-designed chassis
  • Upper deck: composite upper deck
  • Body: 150 mm 1/18 micro vehicle human anatomy (included)


Drivetrain:

  • Type: shaft-drive 4WD
  • Drivetrain: aluminum primary driveshaft
  • Primary drive: pinion/spur
  • Drive ratio: 1:2.5
  • Drive shafts: composite front + back
  • Differentials: composite ball differentials - adjustable front + rear
  • Bearings: 22 high-speed ball-bearings


Suspension system:

  • Front: completely independent
  • Rear: completely independent
  • Dampening: oil-filled coil-over shocks


Geometry:

  • Camber: front/rear: -2° (preset)
  • Caster: 12° (preset)
  • Front Toe: toe-out 0.5° (preset)
  • Rear Toe: toe-in 3.5° (preset)
  • Anti-roll pubs: 1.0mm front + back (included)
  • Wheelbase: 150 mm


Others:

  • Wheels: XRAY micro truck wheels
  • Tires: XRAY micro truck low pin rubber tires
  • guidelines: full-color manual with 3D images
  • Packing: carton box with 8 plastic bags with parts
  • Additionals included: certificate, parts list, decals, Hudy 3.0mm screwdriver, XRAY catalog
  • Not included: radio system (transmitter and receiver), steering servo, ESC, motor, battery pack, battery charger
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
