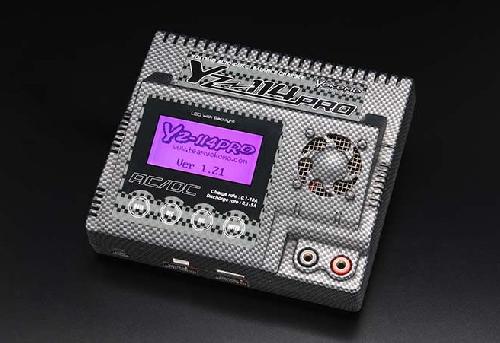

Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)  [YOKYZ114PRO]

Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)
Price:
USD$179.60
Brand:
Yokomo
Model:
YOKYZ114PRO
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Battery / Charger / LED - Chargers / Checkers category
Write a review
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"

  • The option regarding the AC / DC fee and discharge vessel with a fully-featured necessary in helping you to benefit from the RC vehicle debuts! While the input energy source handy AC100V, I realize the high output billing current of 10A. A reaction to many different battery, discharge function, such as for example stability asking function, a helpful function may be the high-spec billing and discharging of the vessel full. Further, the waiting Age, during charging you, as well as the charging you by the end of purpose of the color regarding the backlight is changed with regards to the form of the battery pack is equipped. Graphical representation of the cost and discharge additionally convenient, it is safe designed in such a method that one may comprehend the fee state intuitively.

Sets Includes:

  • Charge and discharge vessel body Main human anatomy of battery charger x1
  • AC100V power cable Power supply cable (AC100V) x1
  • DC12V power cable power cable (DC12V) x1
  • 7.2V battery pack connector for 7.2V battery pack connect cords x1
  • Mini Battery connecting cord Mini battery connect cordes x1
  • Banana connector with linking cord Banana connector cords x1
  • Alligator connector Clip connector x1

Specials Features:

  • Charge Current: 10A
  • Discharge present: 5A
  • Input energy: AC100V ~ 240V DC11V ~ 15V
  • Appropriate Battery: Li-po · Li-fe 1-cell to 5 cellular Ni-MH · Ni-cd 1-cell to 14 cellular
  • Balance recharging function gear
  • The graph displays the charging you and discharging
  • Battery cellular count automated recognition
  • Standby, charging you time, charging you by the end, the colour for the backlight is changed by the asking mode, can be checked immediately hawaii.

Features:

  • Energy / power DC11-15V AC100-240V (50/60Hz)
  • Rechargeable battery matching cellular number / Battery-number regarding the cells
  • Li-po 1-5cell (3.7-18.5V)
  • Li-fe 1-5cell (3.3-16.5V)
  • Ni-cd/Ni-MH 1-14cell (1.2-16.8V)
  • Recharging present / fee current
  • Li-ion/Li-po/Li-fe 100-10000mAh 1C (0.1A-10.0A)
  • Ni-cd/Ni-MH 0.1-10.0A (0.1A step)
  • Discharge present / Discharge current Ni-cd/Ni-MH/Li-ion/Li-po/Li-fe 0.1-5.0A (100mAh step)
  • Charge restriction / Charge limit 85W
  • Discharge limitation / Discharge restriction 20W
  • Delta peak voltage / Delta peak voltage Ni-cd/Ni-MH 3-25mV/cell
  • Display / Show 128 x 64/7 color LCD Backlight
  • Proportions: 172 × 154 × 58mm
  • Please be aware the main cord is for a Japanese design plug socket
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
